Press the securing clips on both sides of the memory slot concerned
outward.
▶
If applicable, remove the dummy module.

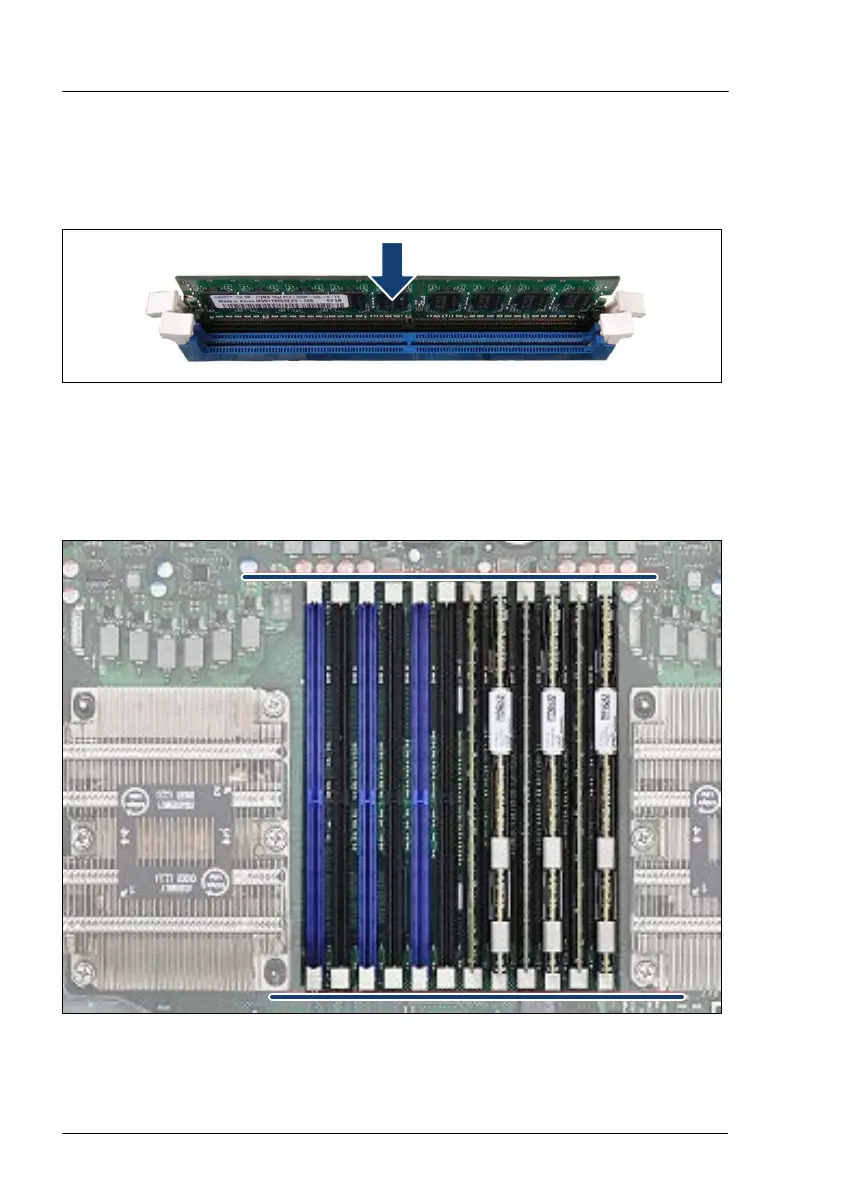

Figure 152: Installing a memory module
▶
Align the notch on the bottom of the module with the crossbar in the slot.
▶
Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
Figure 153: Correct position of securing clips
Main memory
264 Upgrade and Maintenance Manual RX2520 M5
