Preliminary steps
▶
"Suspending BitLocker functionality" on page 65
.
▶
"Shutting down the server" on page 45.
▶
"Disconnecting the power cord" on page 46.
▶
"Getting access to the component" on page 47.
▶
"Removing the air duct" on page 58.
Removing a memory module

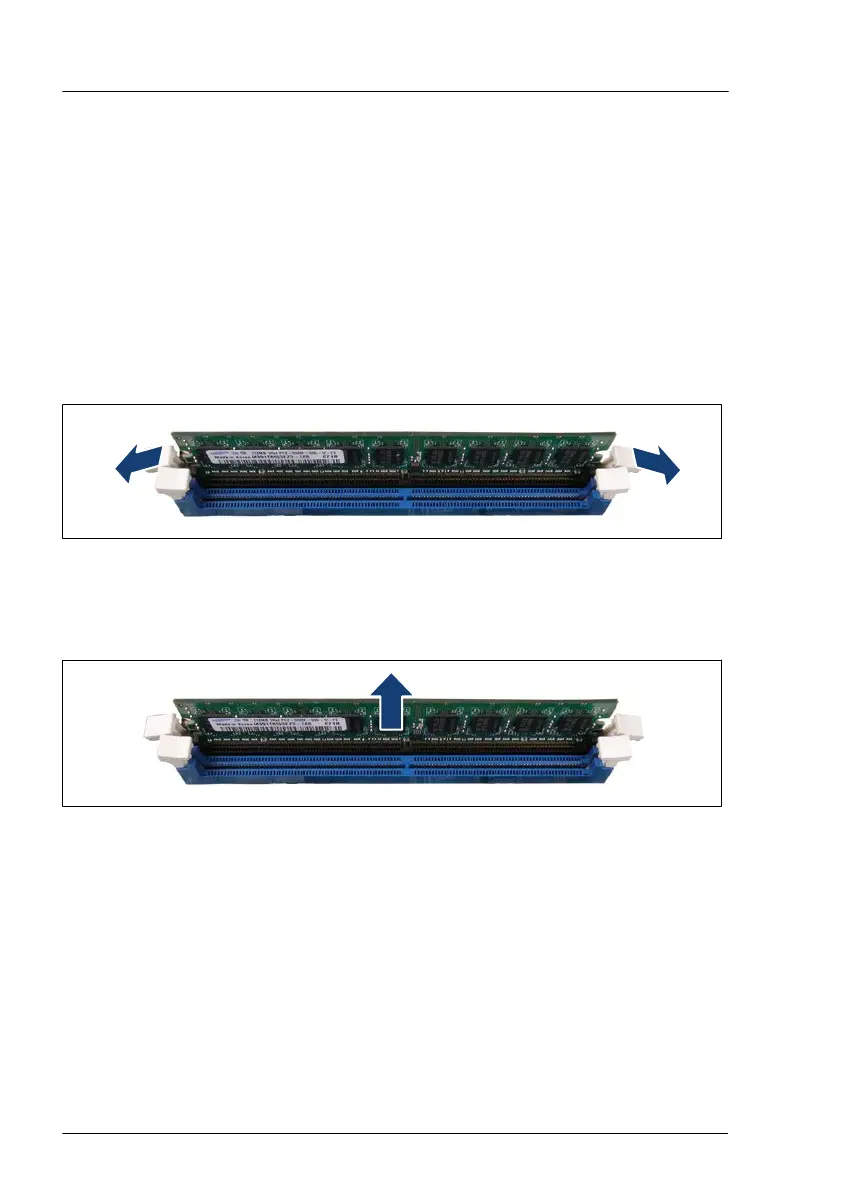

Figure 154: Removing memory modules (A)
▶
Eject the desired memory module by pressing out the securing clips at each
end of the memory slot.
Figure 155: Removing memory modules (B)
▶
Remove the ejected memory module.
▶
If applicable, install a dummy module.
Concluding steps
▶
"Installing the air duct" on page
59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
Main memory
266 Upgrade and Maintenance Manual RX2520 M5
