Fujitsu PRIMERGY RX2520 M5

CSS
USB3.0
Front
ODD
OOB
Front
Panel 1
SATA ODD
USB2.0
Internal
PSU1
Slot OCP module
Micro
SD
SSD2
M.2
M.2
SSD1
TPM
HDD LED 2
PSU 2
CTRL
FAN 1/2 FAN 5/6
FAN 9/10 FAN 11/12
CPU 2
CPU 1
VPP CPU1
VPP CPU2
JP3
Intrusion
USB3.0
Internal
ROC
LCD
PSU2 EXTPSU2 MAIN
SATA
4-7
SATA
0-3
Front Panel
2
PWR1 PWR2 PWR3 PWR4
Battery
CPU 2 DIMM 1K
CPU 2 DIMM 1L
CPU 2 DIMM 1M
CPU 1 DIMM 1C
CPU 1 DIMM 1B
CPU 1 DIMM 1A
CPU 1 DIMM 1D
CPU 1 DIMM 1E
CPU 1 DIMM 1F
CPU 2 DIMM 1J
CPU 2 DIMM 1H
CPU 2 DIMM 1G
VROC
HDD LED 1

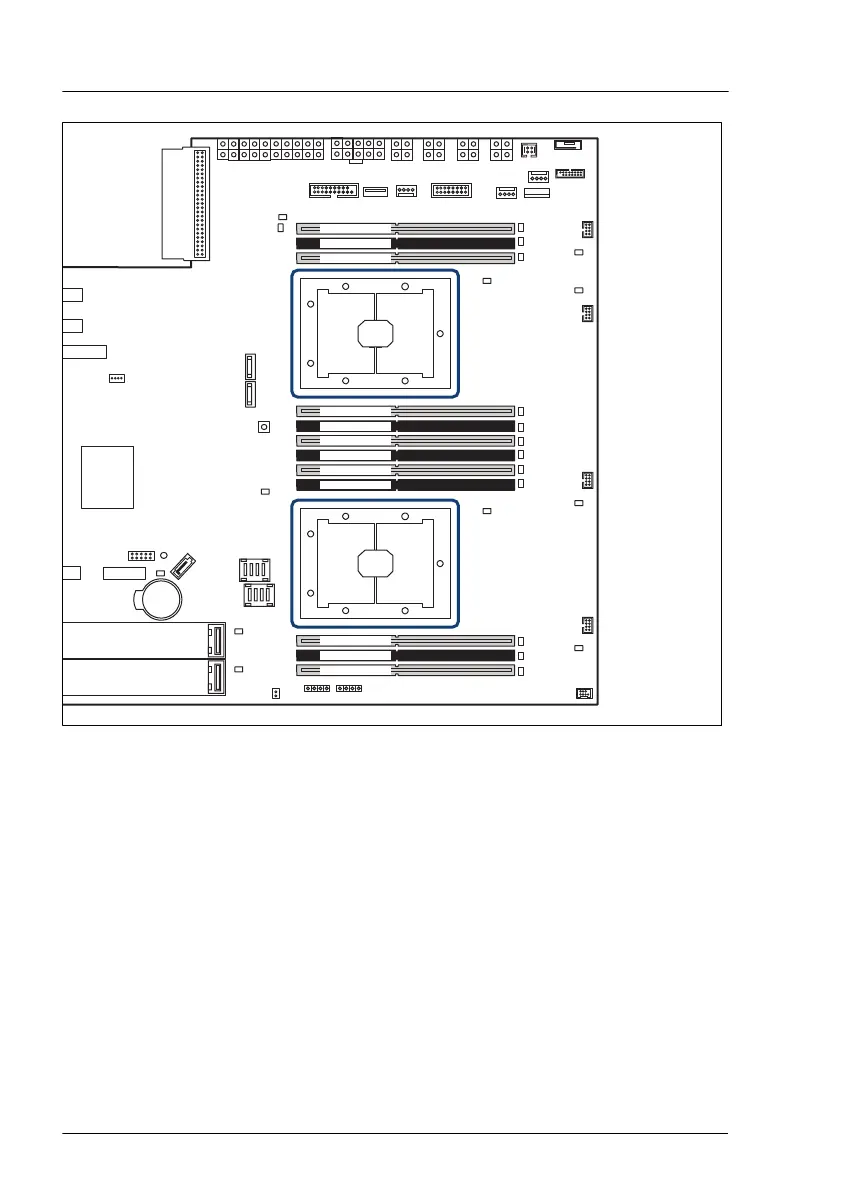

Figure 156: CPU slots
Supported CPUs
–
up to two Intel
®
Xeon
®
CPUs (Gold, Silver
, Bronze)
–
two CPU sockets P0 LGA 3647
–
supported CPUs up to 125 W
–
core frequencies of more than 3 GHz
–
both CPUs must be of the same type
Processor (CPU)
270 Upgrade and Maintenance Manual RX2520 M5
