Fujitsu PRIMERGY RX2520 M5

A
B

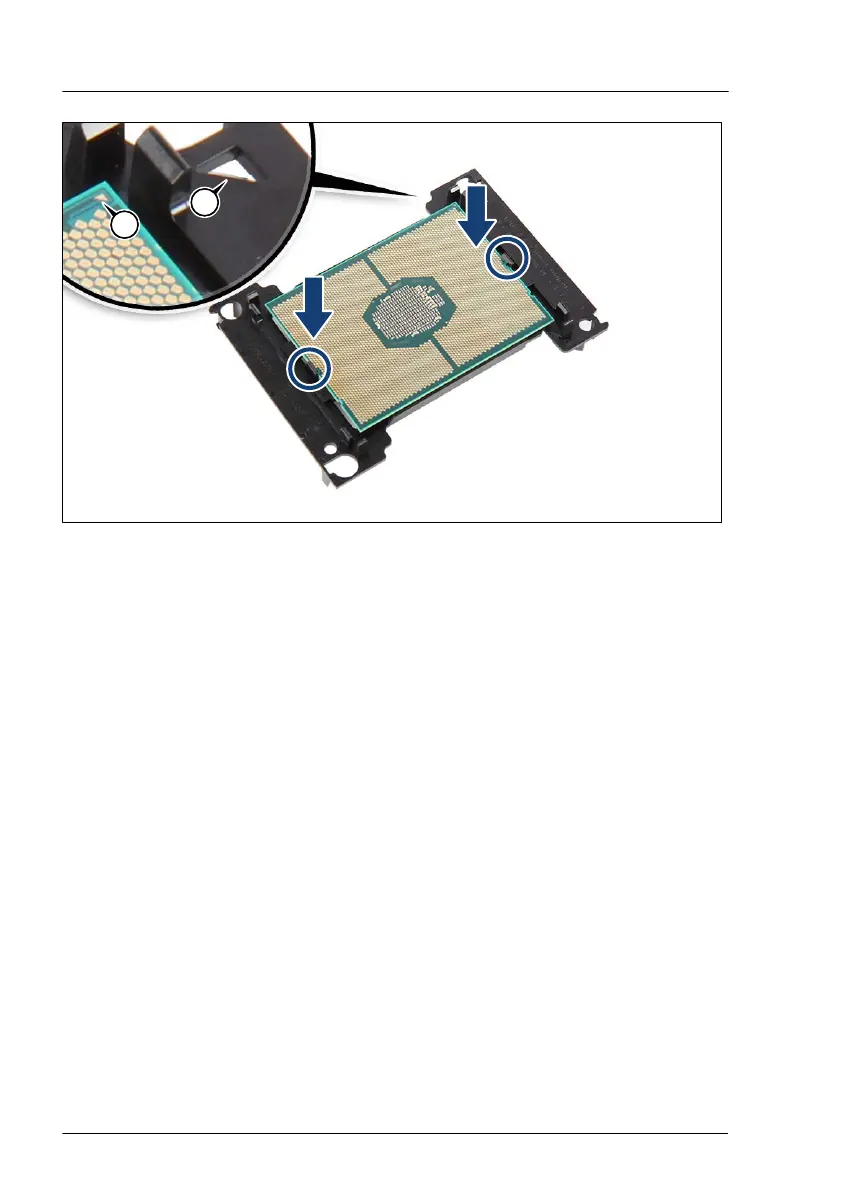

Figure 160: Installing the CPU in the CPU frame
▶
Click the CPU into the CPU frame (see arrows). Ensure that the triangle
marks on CPU (A) and on CPU frame (B) are on the same edge.
▶
Ensure that the CPU fits in its place.
Processor (CPU)
276 Upgrade and Maintenance Manual RX2520 M5
