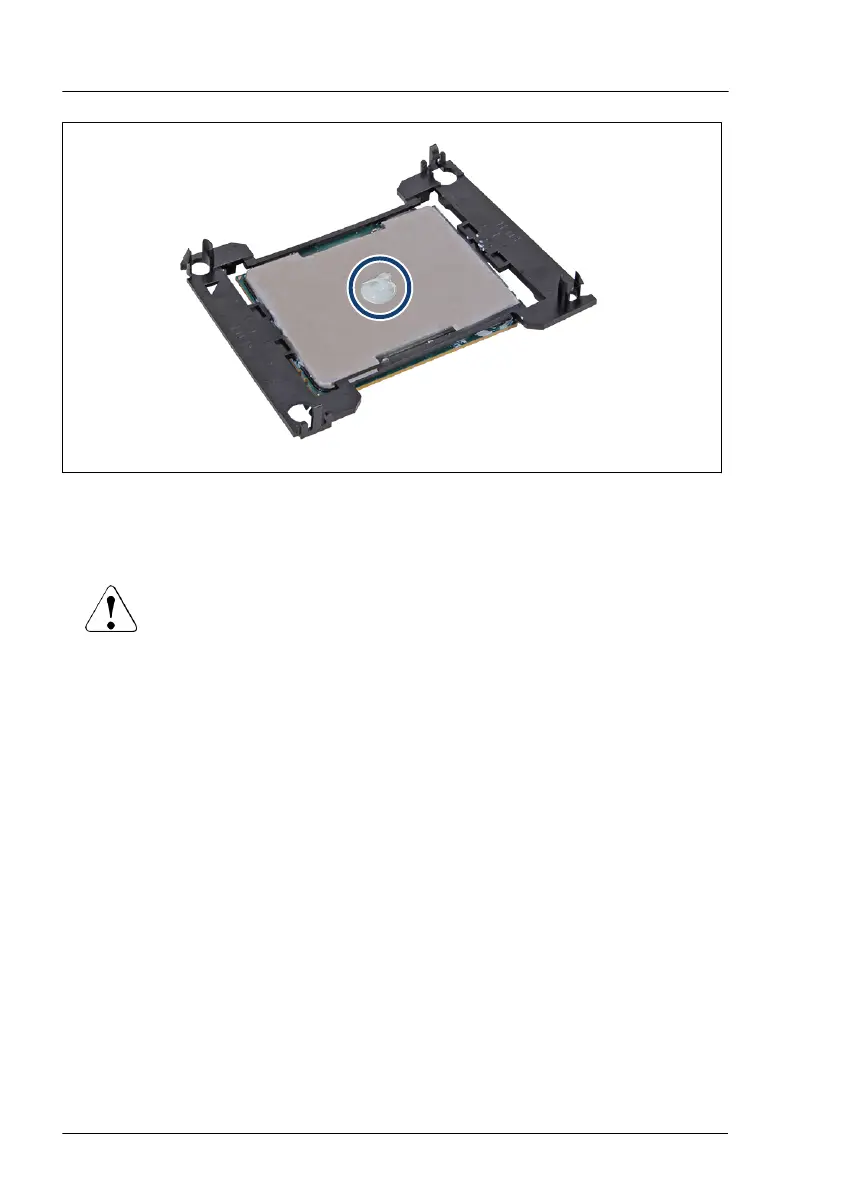

Figure 170: Applying the thermal paste
▶
Apply a small point-shaped amount of thermal paste (1.0 gram, see
description above) to the center of the CPU surface as shown.
CAUTION
▶
Do not mix different types of thermal paste.
Installing the CPU and heat sink
▶
Confirm that the CPU model number printed on the top of the CPU fits with
the requirements.
▶
If applicable, remove the protective cap from the bottom side of the new
CPU.
▶
Install the CPU and heat sink, see "Installing the CPU" on page
275 and
"Installing the heat sink" on page
277.
Concluding steps
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
Processor (CPU)
288 Upgrade and Maintenance Manual RX2520 M5
