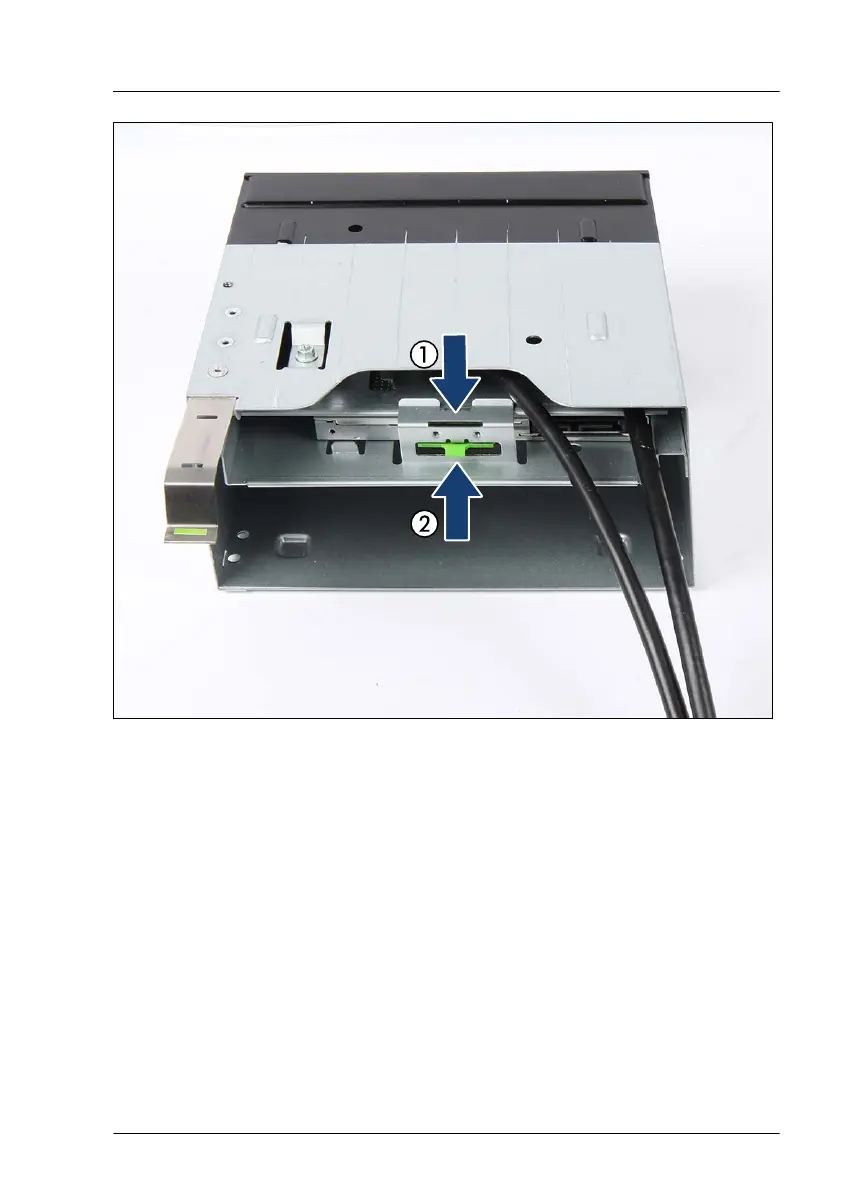

Figure 178: Installing the ODD (B)
▶
Press on the latch from topside (1), while sliding in the ODD, to make the
engagement of the ODD latch easier.
▶
Push the ODD latch upward, so that the ODD latch engages firmly (2).
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 297
