Fujitsu PRIMERGY RX2520 M5

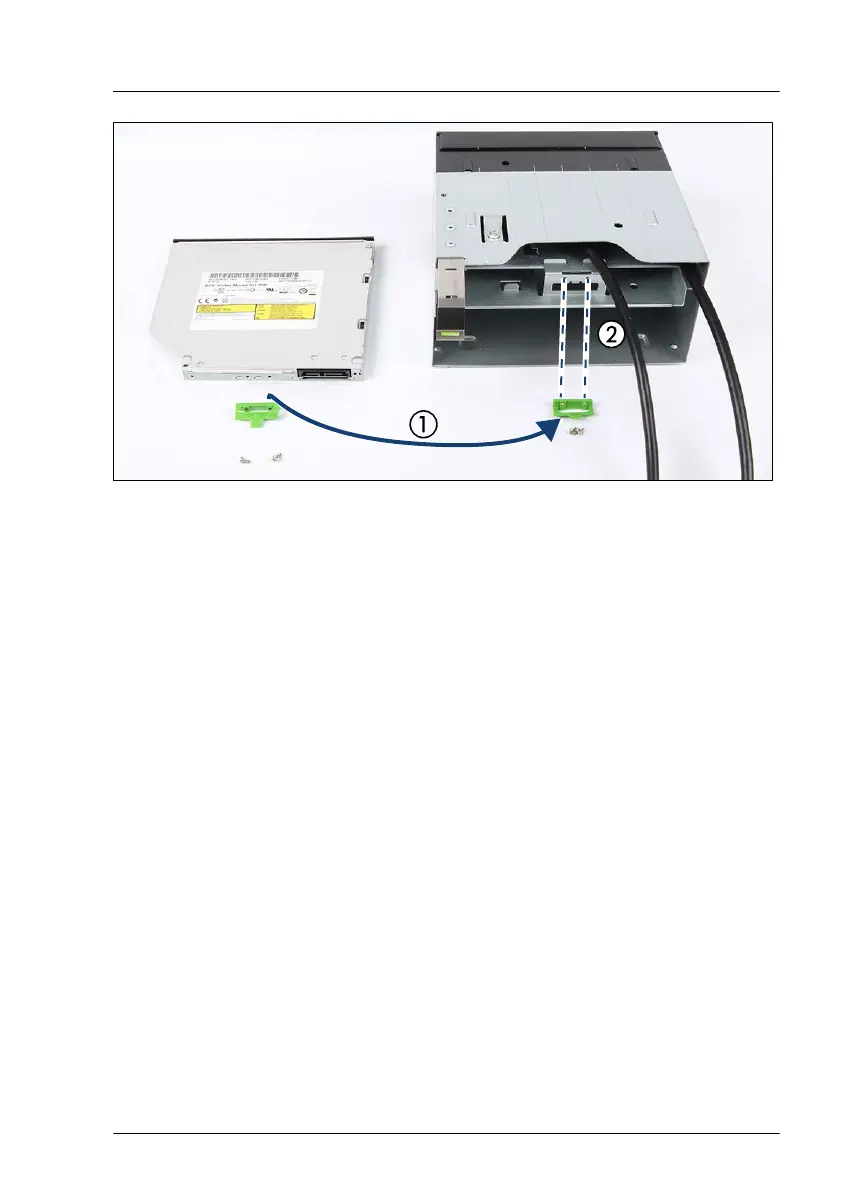

Figure 184: Installing ODD latch to the front cage
▶
Turn the ODD latch 180° as shown (1).
▶
Fasten the ODD latch with two screws as shown (2).
Accessible drives
RX2520 M5 Upgrade and Maintenance Manual 303
