Disconnect both cables (1, 2).

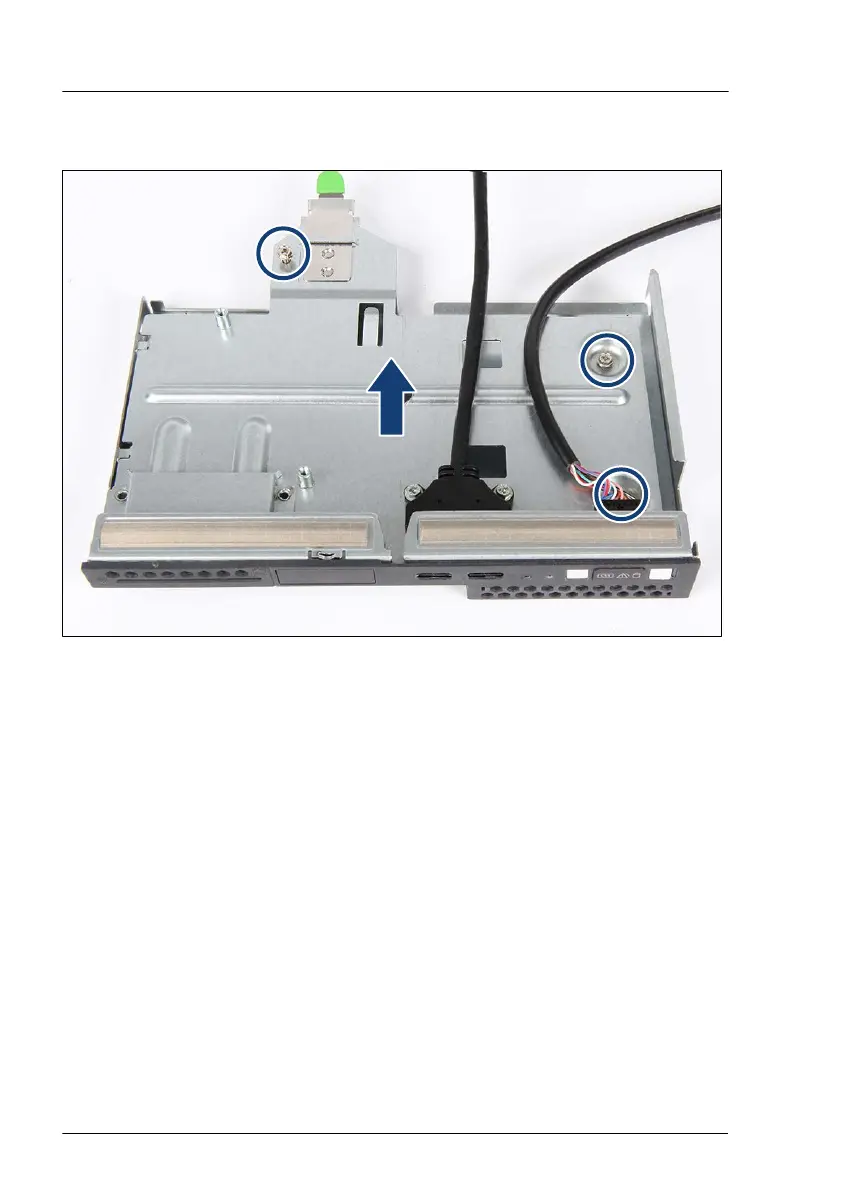

Figure 194: Removing the cover plate
▶
Disconnect the front panel cable.
▶
Remove the three screws (see circles).
▶
Remove the cover plate of the front panel module (see arrow).
Accessible drives
