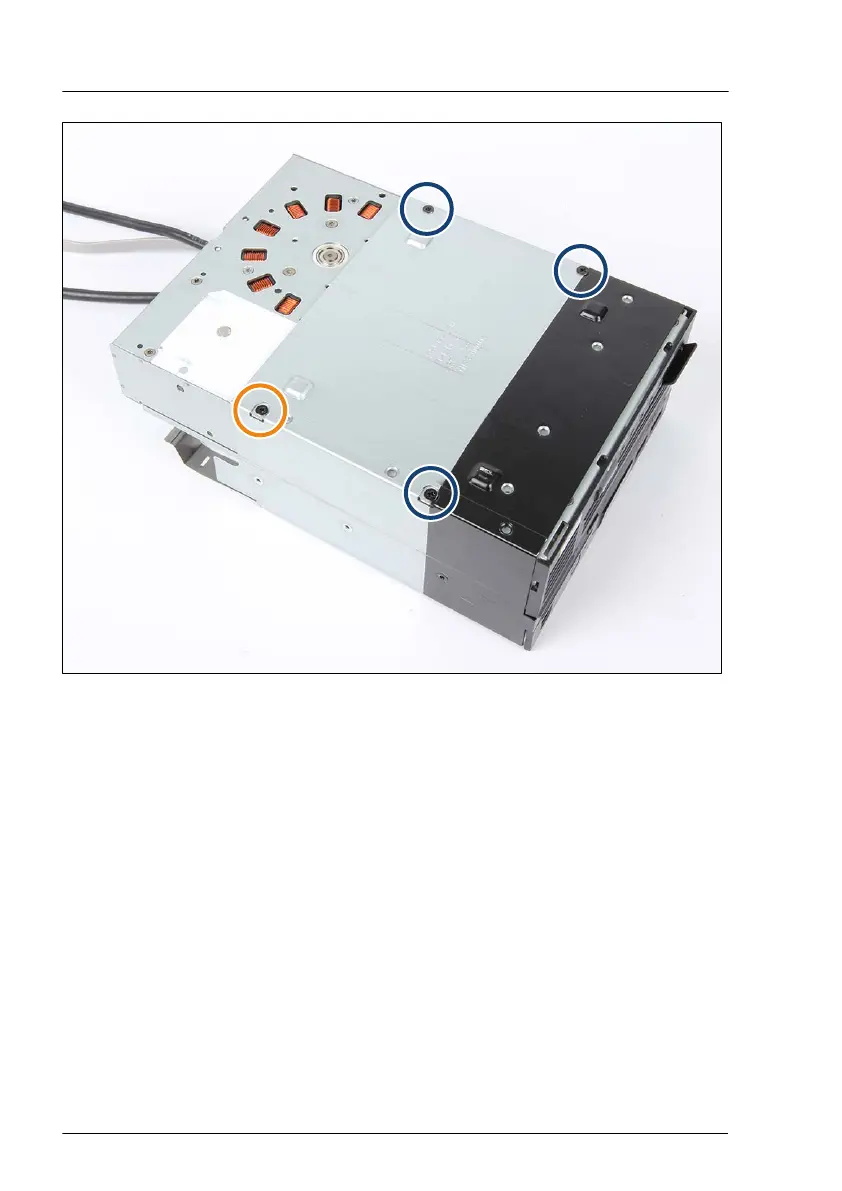

Figure 200: Installing the LTO drive (B)
▶
If applicable, fasten the LT
O drive with four screws (see blue and orange
circles).
▶
In case of an LTO7 drive, fasten the LTO drive with three screws (see blue
circles).
Accessible drives
322 Upgrade and Maintenance Manual RX2520 M5
