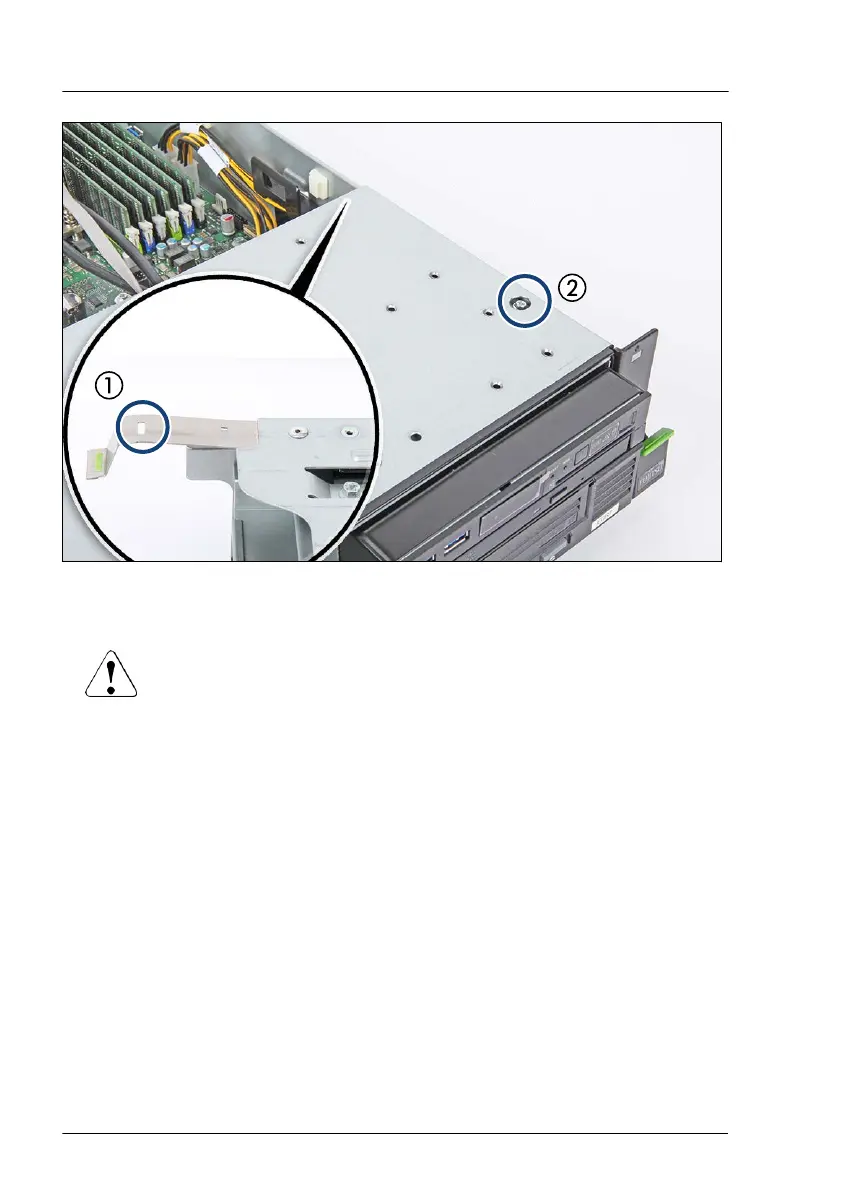

Figure 202: Installing the front panel cage (B)
▶
Take note of the marked recess in the locking lever (see close-up).
CAUTION
Only for installations with LTO drive:
▶
The front of the front panel is not flat with the chassis of the
server because the drive is too long.
▶
Push in the front panel cage until it is engaged firmly (1).
▶
Fasten the front panel cage with one screw (2).
Accessible drives
324 Upgrade and Maintenance Manual RX2520 M5
