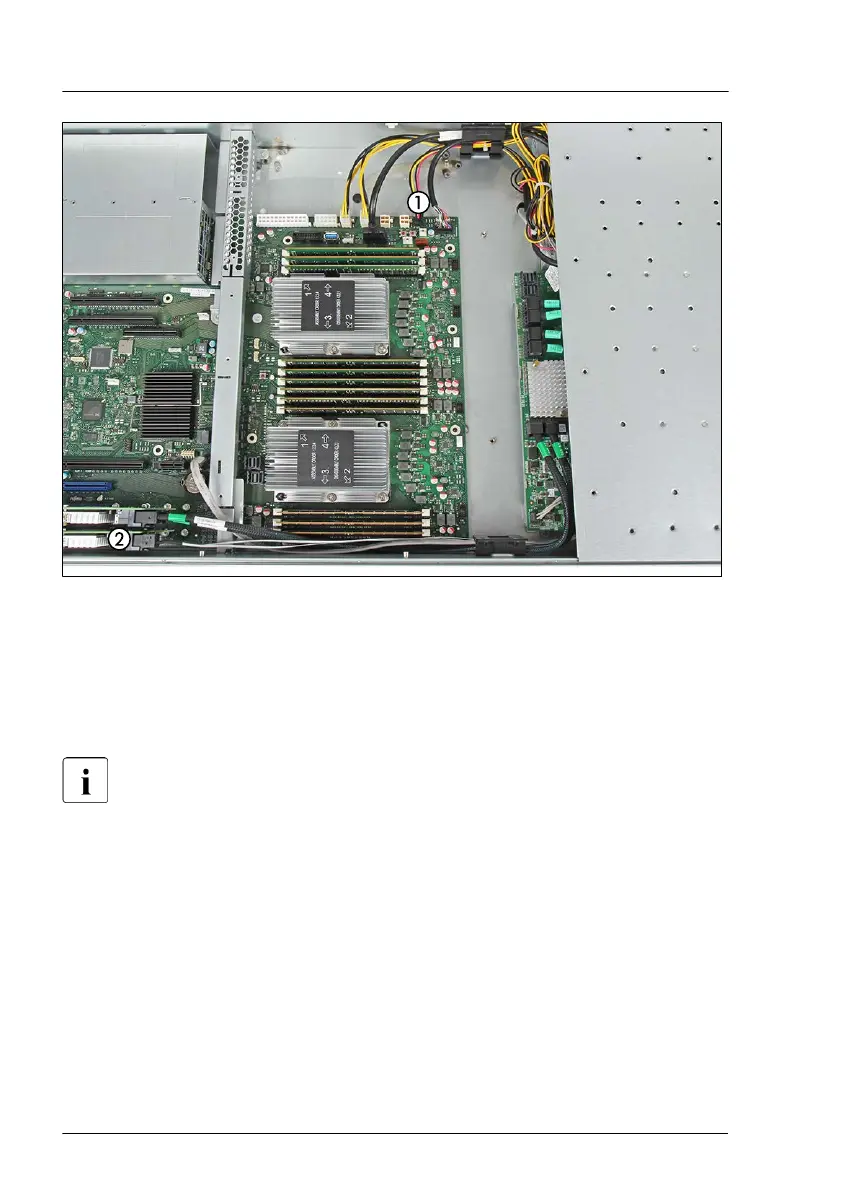

Figure 204: Connecting the cables to the system board and PSAS controller
▶
Connect the LT
O PWR/SAS cable:
1 Power cable to connector "PWR ODD" on the system board
2 SAS cable to connector "MLC1" on the PSAS controller in slot 1
For the cable plan, see "Appendix B" on page 463
.
Concluding steps
▶
"Installing the fan holder" on page 61
.
▶
"Installing the air duct" on page 59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
▶
"Switching on the server" on page 57.
▶
"Resuming BitLocker functionality" on page 88.
Accessible drives
326 Upgrade and Maintenance Manual RX2520 M5
