Fujitsu PRIMERGY RX2520 M5

Removing the LTO drive

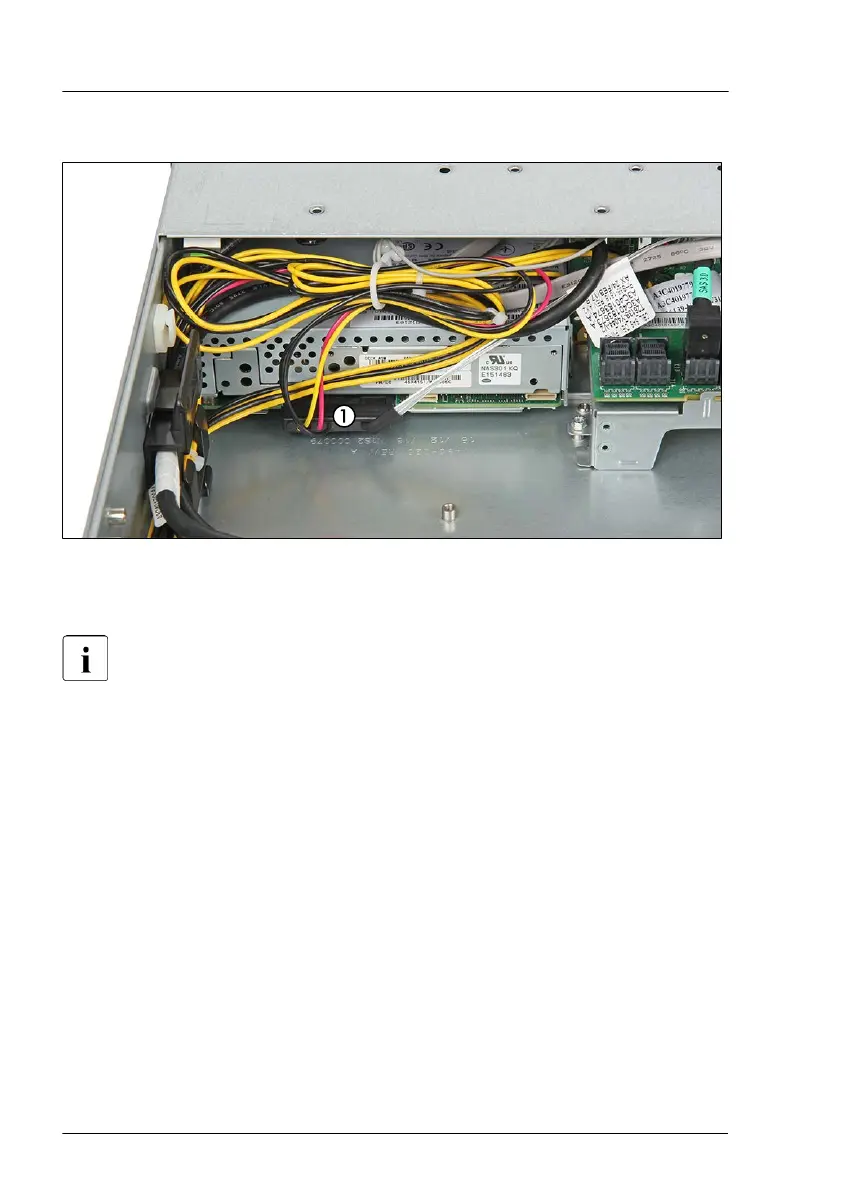

Figure 205: Disconnecting the cable from the LTO drive
▶
Disconnect the LT
O PWR/SAS cable from the LTO drive (1).
If you do not want to replace the LTO drive but remove it, you can
remove the LT
O PWR/SAS cable from the system board and from the
PSAS controller.
Accessible drives
328 Upgrade and Maintenance Manual RX2520 M5
