Fujitsu PRIMERGY RX2520 M5

Removing cables from the front panel module

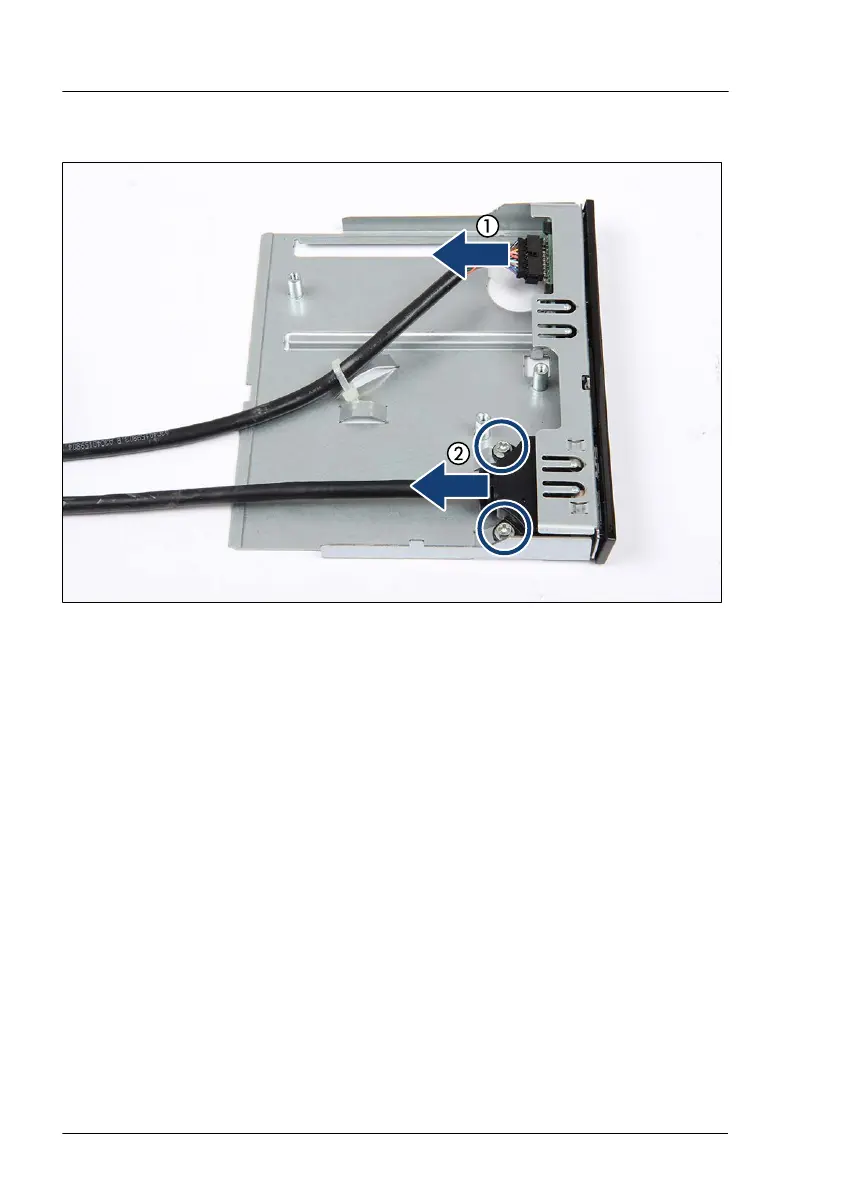

Figure 223: Removing cables from the front panel module
▶
Open the cable ties and disconnect the front panel cable (1).
▶
Remove the two screws (see circles) and disconnect the front USB3.0 cable
(2).
Front panel
352 Upgrade and Maintenance Manual RX2520 M5
