For installations without LTO drive

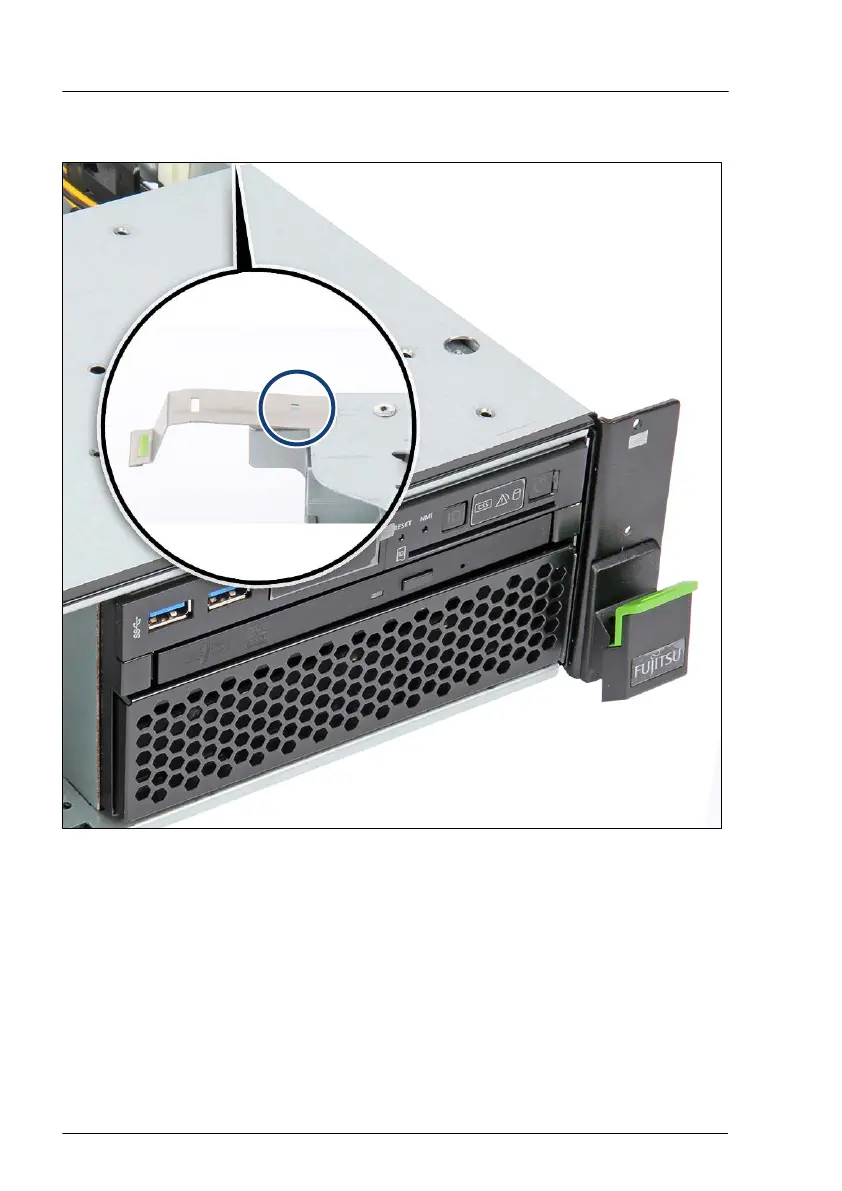

Figure 230: Lock for installations without LTO drive
Concluding steps
▶
"Installing the fan holder" on page 61.
▶
"Installing the air duct" on page
59.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord" on page 56.
Front panel
358 Upgrade and Maintenance Manual RX2520 M5
