Insert the serial interface into the slot cover (1).
▶
Connect the cable to the connector "SERIAL" on the system board (2).

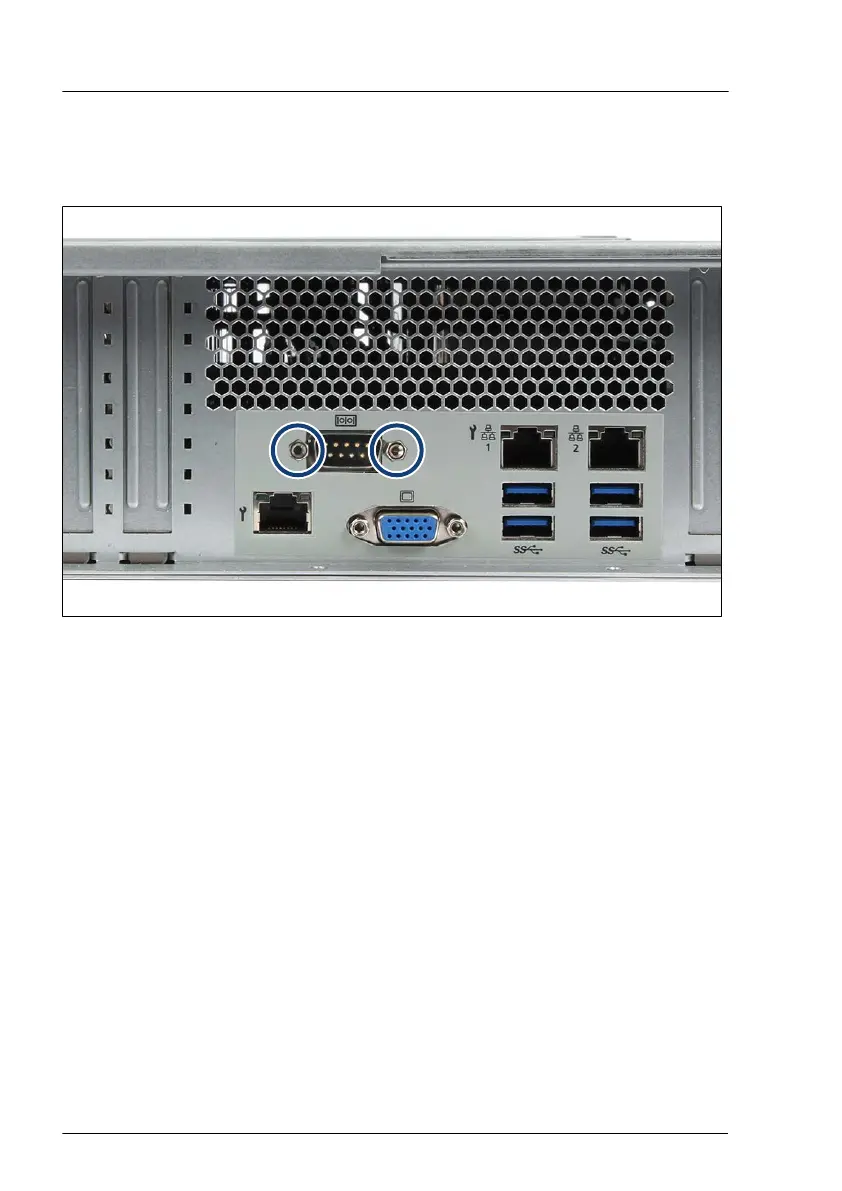

Figure 250: Installing the serial interface (B)
▶
Fasten the serial interface with two hexagon bolts (see circles).
Concluding steps
▶
If applicable, install the expansion card in slot 4, see "Installing an
expansion card" on page
229.
▶
"Reassembling" on page
51.
▶
"Connecting the power cord (AC PSU)" on page 56.
▶
"Switching on the server" on page 57.
Serial interface
382 Upgrade and Maintenance Manual RX2520 M5
