Remove the two hexagon bolts (see circles).

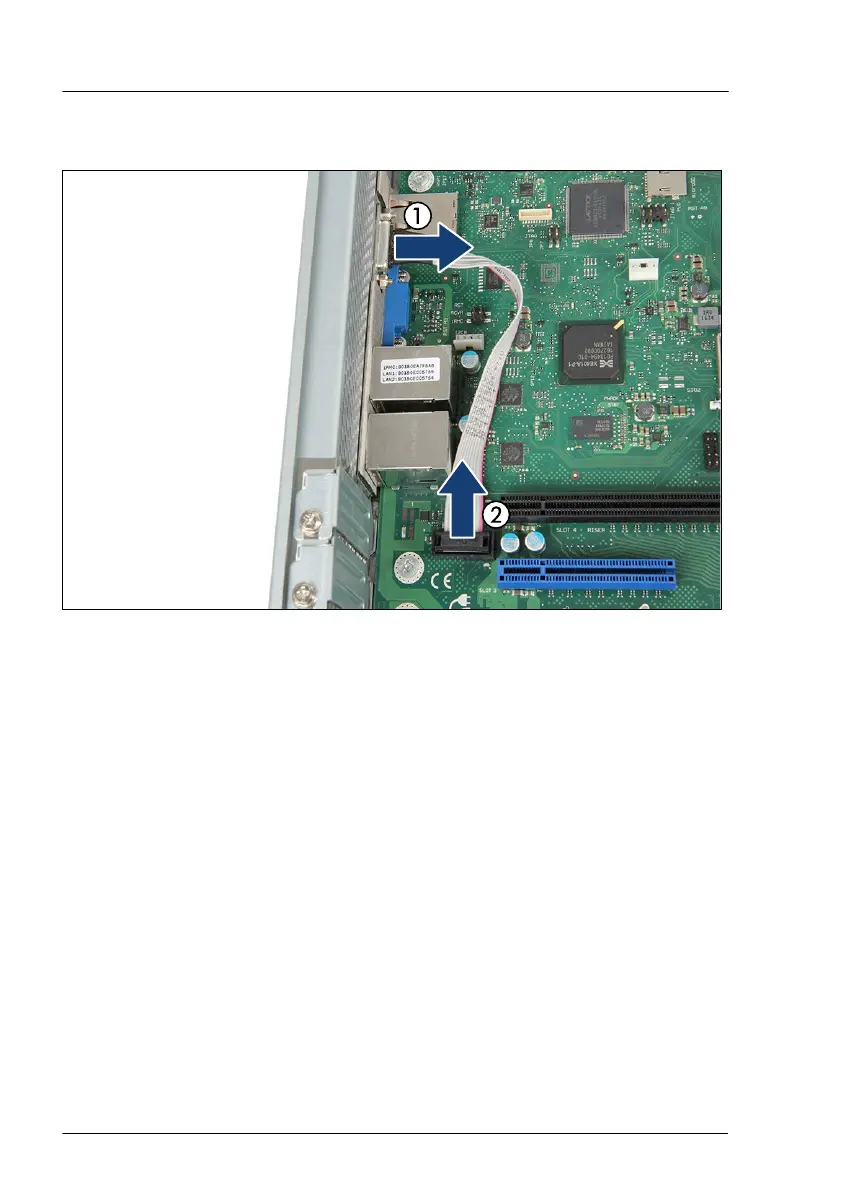

Figure 252: Removing the serial interface (B)
▶
Remove the serial interface (1).
▶
Remove the cable from the system board (2).
Concluding steps
▶
If applicable, install the expansion card in slot 4, see "Installing an
expansion card" on page
229
.
▶
"Reassembling" on page 51.
▶
"Connecting the power cord (AC PSU)" on page 56.
▶
"Switching on the server" on page 57.
Serial interface
384 Upgrade and Maintenance Manual RX2520 M5
