8-50 Section 8-4 - Mechanicals

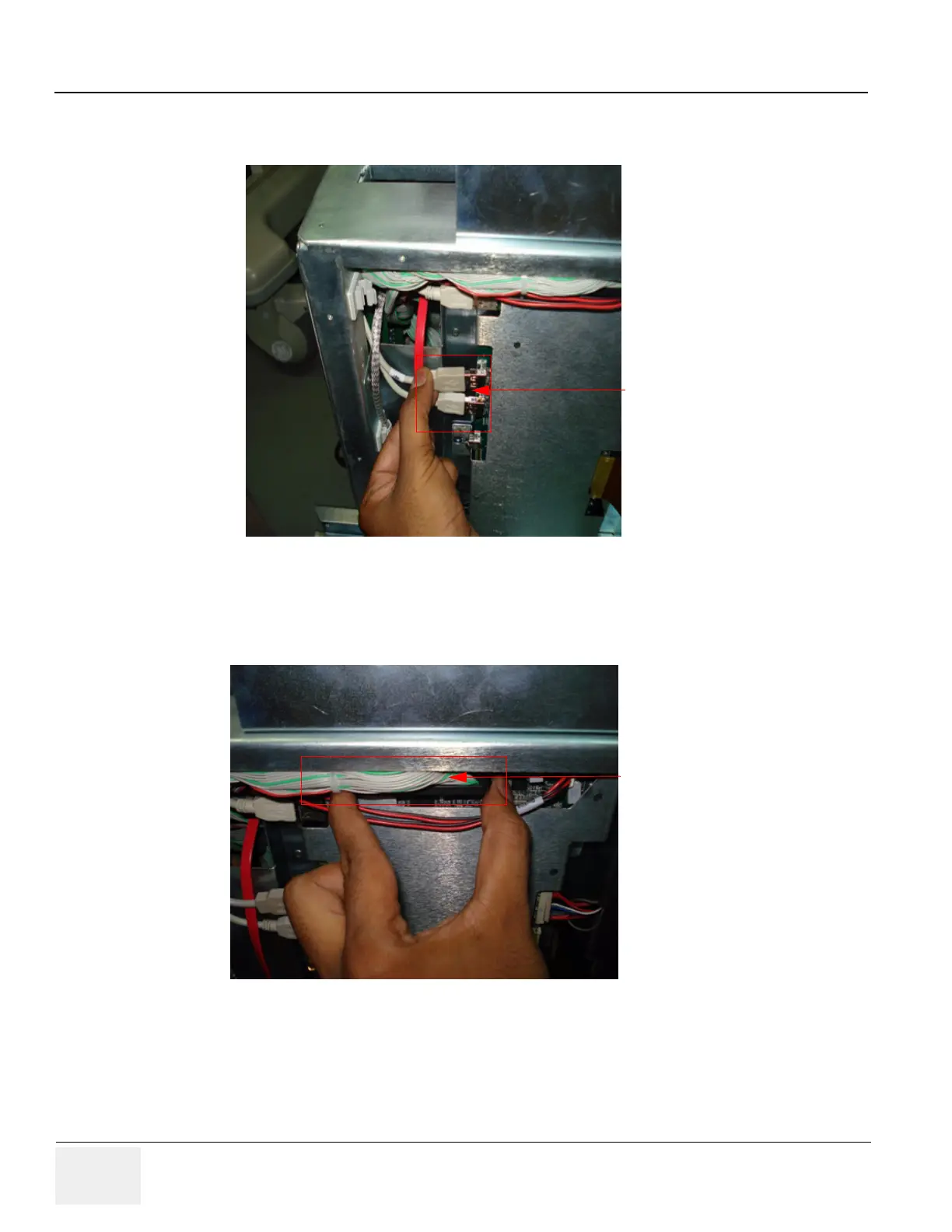

3) Remove USB cable from MST board. Refer Figure 8-42 on page 8-50
Figure 8-42 Removing USB cable of MST board
4) Remove the FRC cable from MST board. Refer Figure 8-43 on page 8-50
Figure 8-43 Removing FRC cable of MST board
USB cable
FRC cable
