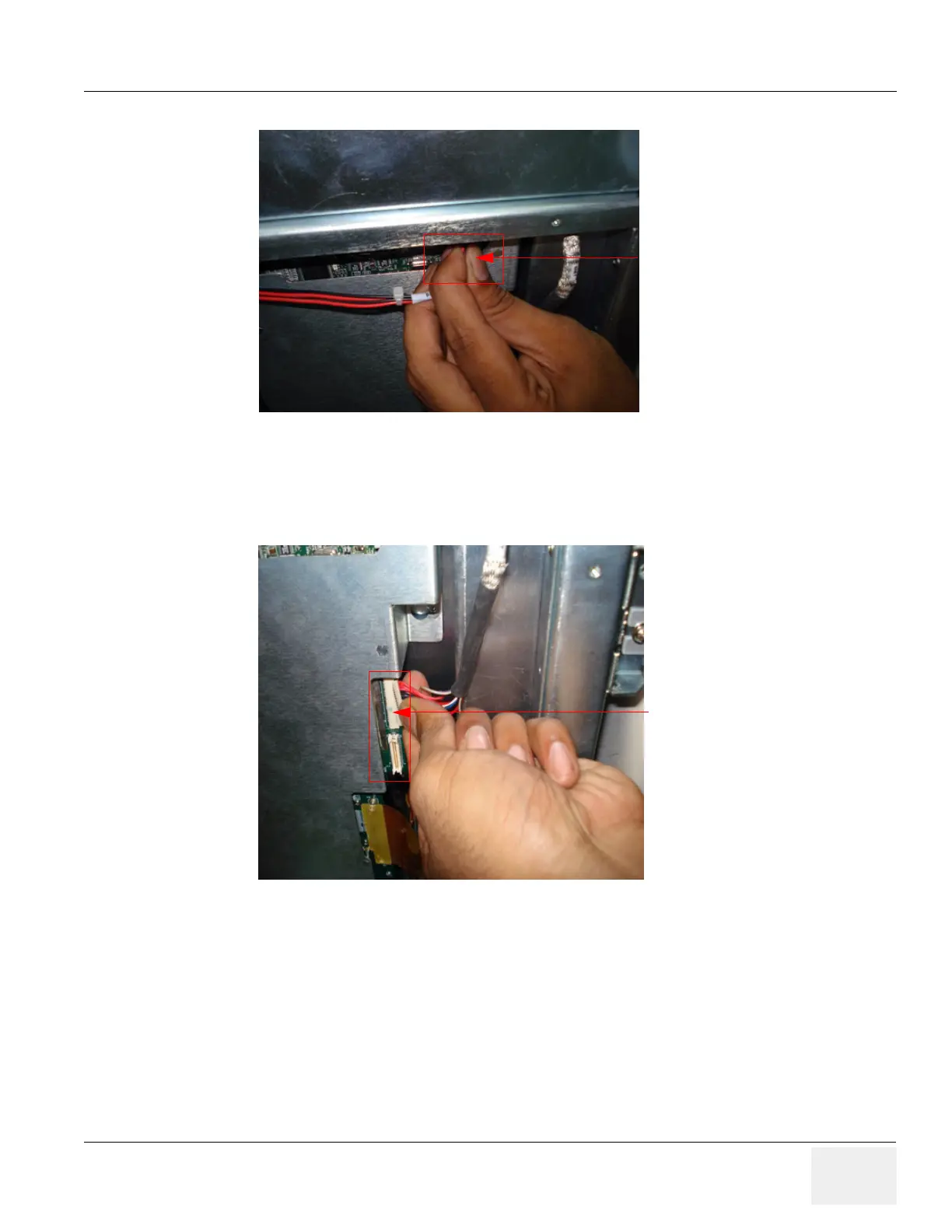

5) Remove the Audio cable from MST board. Refer Figure 8-44 on page 8-51
Figure 8-44 Removing Audio cable of MST board
6) Remove the Power cable from MST board. Refer Figure 8-45 on page 8-51
Figure 8-45 Removing Power cable of MST board
Audio cable
Power cable
