3.7. Analog inputs

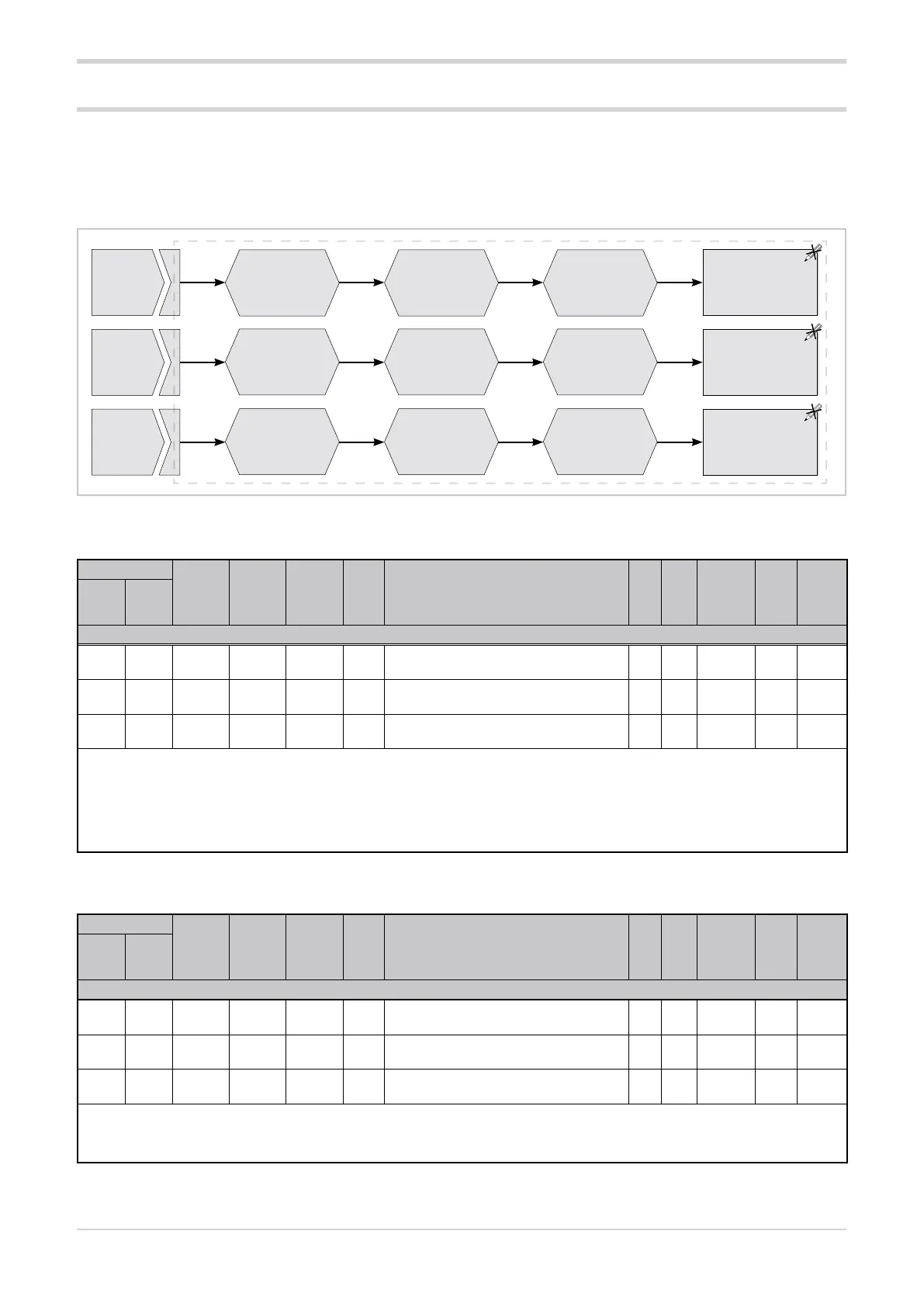

3.7.1. Functional diagram of analog inputs
The Advanced Power Controller has 3 analog inputs whose main purpose is to control the power output. The input electri-
cal signal is processed to obtain a valid analog value for the control function.
The diagram shows the signal processing sequences.
3.7.2. Types of analog input
Address
Format
GPC-OP
menu
Acronym
Global / M/E1/E2
GF_eXpress menu
Attribute Retentive Type Unit of mea- surement Default
Single-
node
Multi-
node
Description
1597 573 16 bit 04.05.01 tP.A1 Global
MainMenu → Global → Inputs →
Analog input 1 → tP.A1
R/W
■
Unsigned
Short
0
1861 837 16 bit 04.06.01 tP.A2 Global
MainMenu → Global → Inputs →
Analog input 2 → tP.A2
R/W
■
Unsigned
Short
0
1868 844 16 bit 04.07.01 tP.A3 Global
MainMenu → Global → Inputs →
Analog input 3 → tP.A3
R/W
■
Unsigned
Short
0
The parameter sets the type of electrical signal expected on analog input A1 or A2 or A3. This signal is typically generated by a probe.
Options: 0 = Input disabled
1 = Voltage 0...10 V
2 = Voltage 0...5 V or potentiometer
3 = Current 0...20 mA
4 = Current 4...20 mA
3.7.3. Analog input lower scale limit
Address
Format
GPC-OP
menu
Acronym
Global / M/E1/E2
GF_eXpress menu
Attribute Retentive Type Unit of mea- surement Default
Single-
node
Multi-
node
Description
1598 574 16 bit 04.05.02 LS.A1 Global
MainMenu → Global → Inputs →
Analog input 1 → LS.A1
R/W
■
Float
(####.#)
s.p. 0.0
1862 838 16 bit 04.06.02 LS.A2 Global
MainMenu → Global → Inputs →
Analog input 2 → LS.A2
R/W
■
Float
(####.#)
s.p. 0.0
1869 845 16 bit 04.07.02 LS.A3 Global
MainMenu → Global → Inputs →
Analog input 3 → LS.A3
R/W
■
Float
(####.#)
s.p. 0.0
The parameter sets the lower limit of the measurement scale used for analog input A1 or A2 or A3.
For examples of the use of the parameter, see paragraph “4.1. Setting parameters LS.A1/LS.A2/LS.A3 and HS.A1/HS.A2/HS.A3”.
min...max: -100.0...200.0
Input
signal 1
Input
signal 2
Input
signal 3
Analog input value
In.A1
Analog input value
In.A2
Analog input value
In.A3
Probe type
tP.A1
Probe type
tP.A2
Probe type
tP.A3
Scale limits,
Offset
LS.A1, HS.A1
oFS.A1
Scale limits,
Offset
LS.A2, HS.A2
oFS.A2
Scale limits,
Offset
LS.A3, HS.A3
oFS.A3
Low-pass filter
FLt.A1
Low-pass filter
FLt.A2
Low-pass filter
FLt.A3
