3.13. Generic alarms AL1 ... AL8
Alarms can be configured to be triggered if the reference
threshold is exceeded (value read greater than maximum
threshold or less than minimum threshold), or if the thresh-
old value is not reached (value read less than maximum
threshold or greater than minimum threshold) or for other
reasons.
The following diagram shows the parameter processing
sequences for the generation of generic alarms.

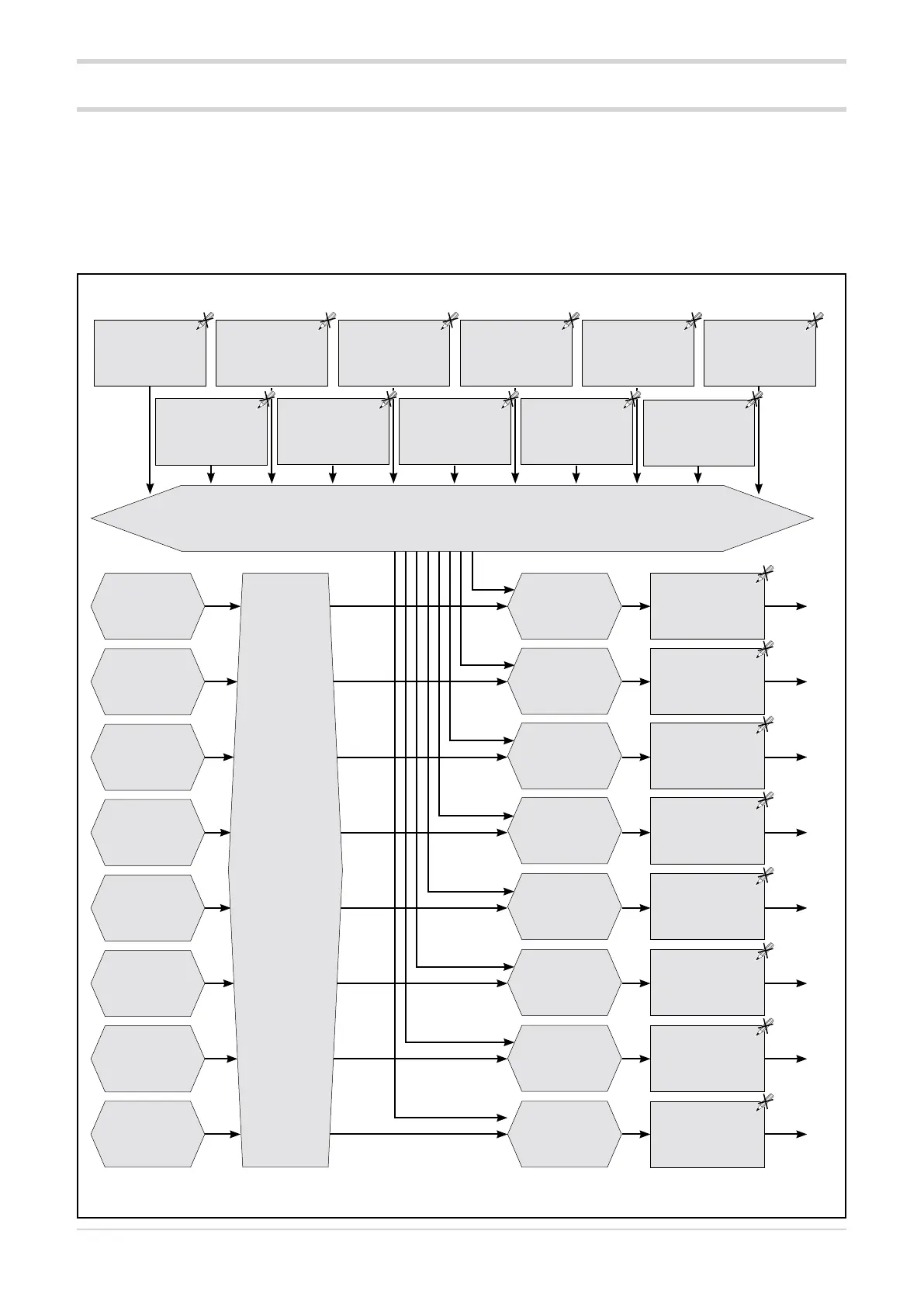

Functional diagram of generic alarms
-----------------------------------------------------OUTPUTS-----------------------------------------------------
The Advanced Power Controller has 8 alarms (AL1...AL8)
per module, described as generic, which can take on vari-
ous functions.
The hysteresis value is used to define a band for the safe
re-entry of the alarm condition and to avoid the continu-
ous generation of alarms if the reference signal fluctuates
around the threshold value.
Input value
value
I.tA_x
Voltmeter input
value
I.tV_x
Filtered line voltage
value
I.VF_x
Load impedance
value
Ld.I_x
Load terminal
temperature value
In.Ntc.LOAD_x
Alarm status
AL1_x
Alarm status
AL2_x
Alarm status
AL3_x
Alarm status
AL4_x
Alarm status
AL5_x
Alarm status
AL6_x
Alarm status
AL7_x
Alarm status
AL8_x
Power board
temperature value
In.Ntc.AIR_x
Analog input value
In.A1, In.A2, In.A3
PWM input value
In.Pwm1, In.Pwm2,
In.Pwm3
Load current value
I.on_x
SSR heat sink
temperature value
In.Ntc.SSR_x
Line terminal
temperature value
In.Ntc.LINE_x
Reference variable selection
A1.r_x, A2.r_x, A3.r_x, A4.r_x, A5.r_x, A6.r_x, A7.r_x, A8.r_x
Alarm thresh-
old
AL.1_x
Enable
alarms
AL.n_x
Alarm type
Hysteresis
A1.t_x, Hy.1_x
Alarm setpoint
AL.2_x
Alarm type
Hysteresis
A2.t_x, Hy.2_x
Alarm setpoint
AL.3_x
Alarm type
Hysteresis
A3.t_x, Hy.3_x
Alarm thresh-
old
AL.4_x
Alarm type
Hysteresis
A4.t_x, Hy.4_x
Alarm thresh-
old
AL.5_x
Alarm type
Hysteresis
A5.t_x, Hy.5_x
Alarm thresh-
old
AL.6_x
Alarm type
Hysteresis
A6.t_x, Hy.6_x
Alarm thresh-
old
AL.7_x
Alarm type
Hysteresis
A7t_x, Hy.7_x
Alarm thresh-
old
AL.8_x
Alarm type
Hysteresis
A8.t_x, Hy.8_x
with x = 1...3
