3.20. Analog outputs
The Advanced Power Controller has 3 optional analog out-
puts that allow the value of analog quantities to be retrans-
mitted.
The engineering value of the quantity is limited to the set
scale values and reparameterisation is applied according to
the selected output type.

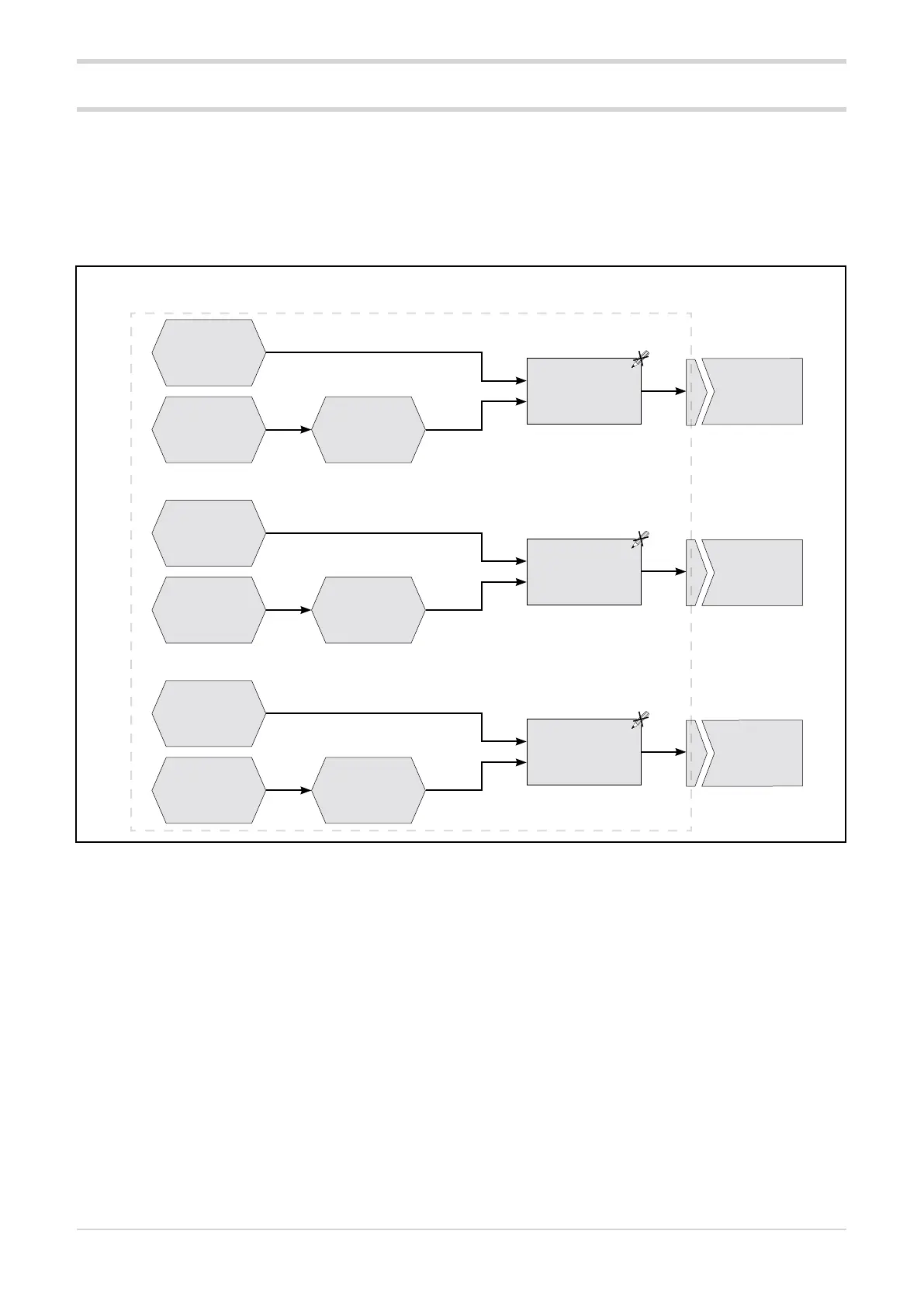

Functional diagram of analog outputs
Output value
Out.AO1
Reference
allocation
rF.AO1
Output type
tP.AO1
Scale limits
LS.AO1
HS.AO1
Output value
Out.AO2
Reference
allocation
rF.AO2
Output type
tP.AO2
Scale limits
LS.AO2
HS.AO2
ANALOG
OUTPUT
3
Output value
Out.AO3
Reference
allocation
rF.AO3
Output type
tP.AO3
Scale limits
LS.AO3
HS.AO3
ANALOG
OUTPUT
2
ANALOG
OUTPUT
1
