Gerber Solara ion User Manual

CHAPTER 7
142
Gerber Solara ion Web Pages
4/29/10 Rev G

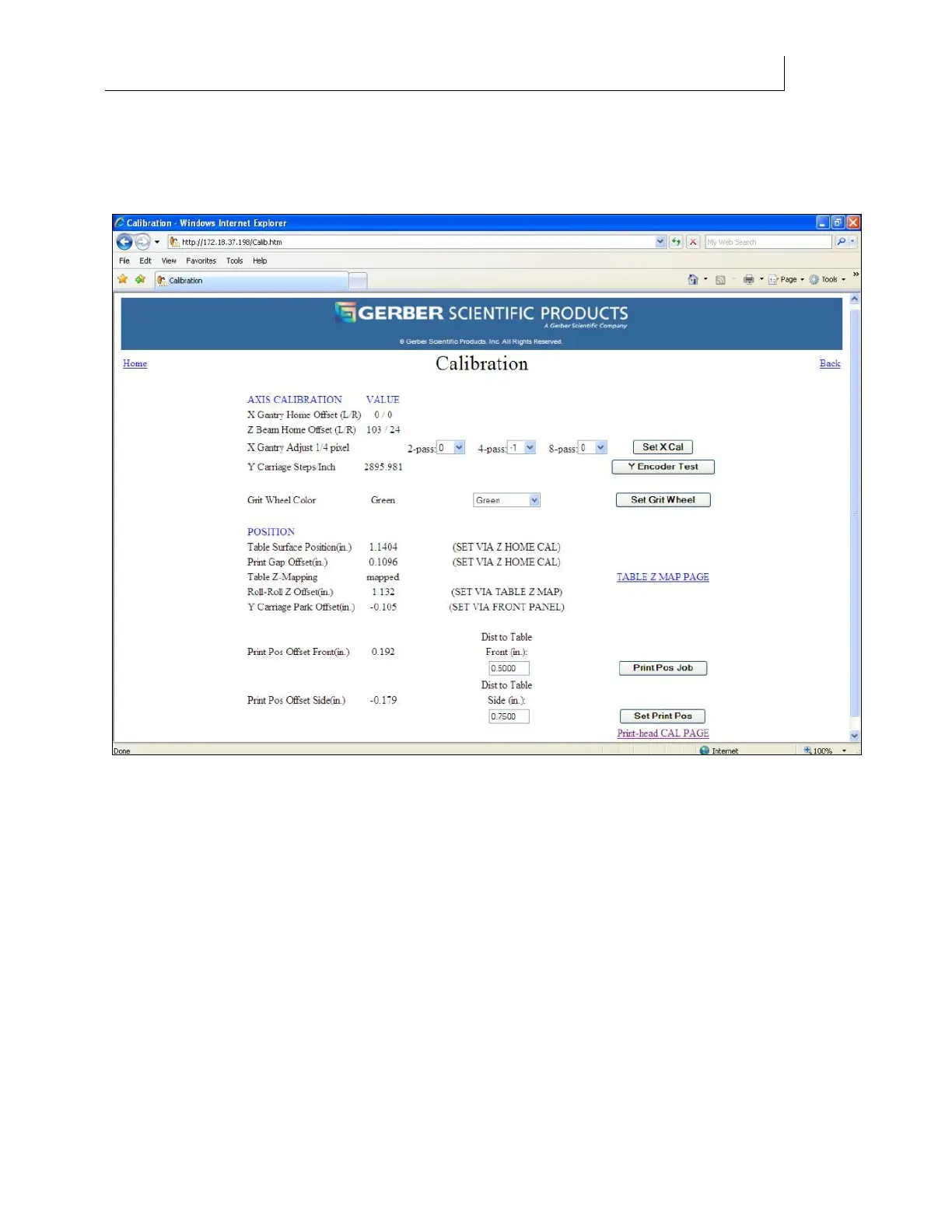

Calibration web page
The Calibration web page is available from a link on the Gerber Solara ion Home web page and
includes settings and calibrations that can be updated by the operator and/or service engineer.
The AXIS CALIBRATION section includes the following displayed settings and calibrations:
 X Gantry Home Offset (L/R) is a setting that can not be updated by the operator.
 Z Beam Home Offset (L/R) is a setting that can not be updated by the operator.
 X Gantry Adjustment ¼ pixel is a calibration that can be performed by the operator.
 Y Carriage Steps/Inch is a calibration that can be performed by the operator.
 Grit Wheel Color is set by a service engineer when grit wheels are installed.
The POSITION section includes the following settings and calibrations:
 Table Surface Cal is a calibration performed by a service engineer via Z Home
Calibration.
 Print Gap Offset is a setting performed by a service engineer via Z Home Calibration.
 Table Z Mapping is a calibration performed by a service engineer via the Table Z Map
page.
