Gerber Solara ion User Manual

CHAPTER 7
143
Gerber Solara ion Web Pages
4/29/10 Rev G
 Roll-to-Roll Z Offset is a setting performed by a service engineer via Table Z Map
page.
 Y Carriage Park Offset is an alignment performed by a service engineer via the
printer’s front panel.
 Print Position Offset Front (in) is a calibration that can be performed by the operator.
 Print Position Offset Side (in) is a calibration that can be performed by the operator.
The PRINTHEADS section includes:
 Link to the Print-head Calibration page which provides access to a number of
printhead alignments.

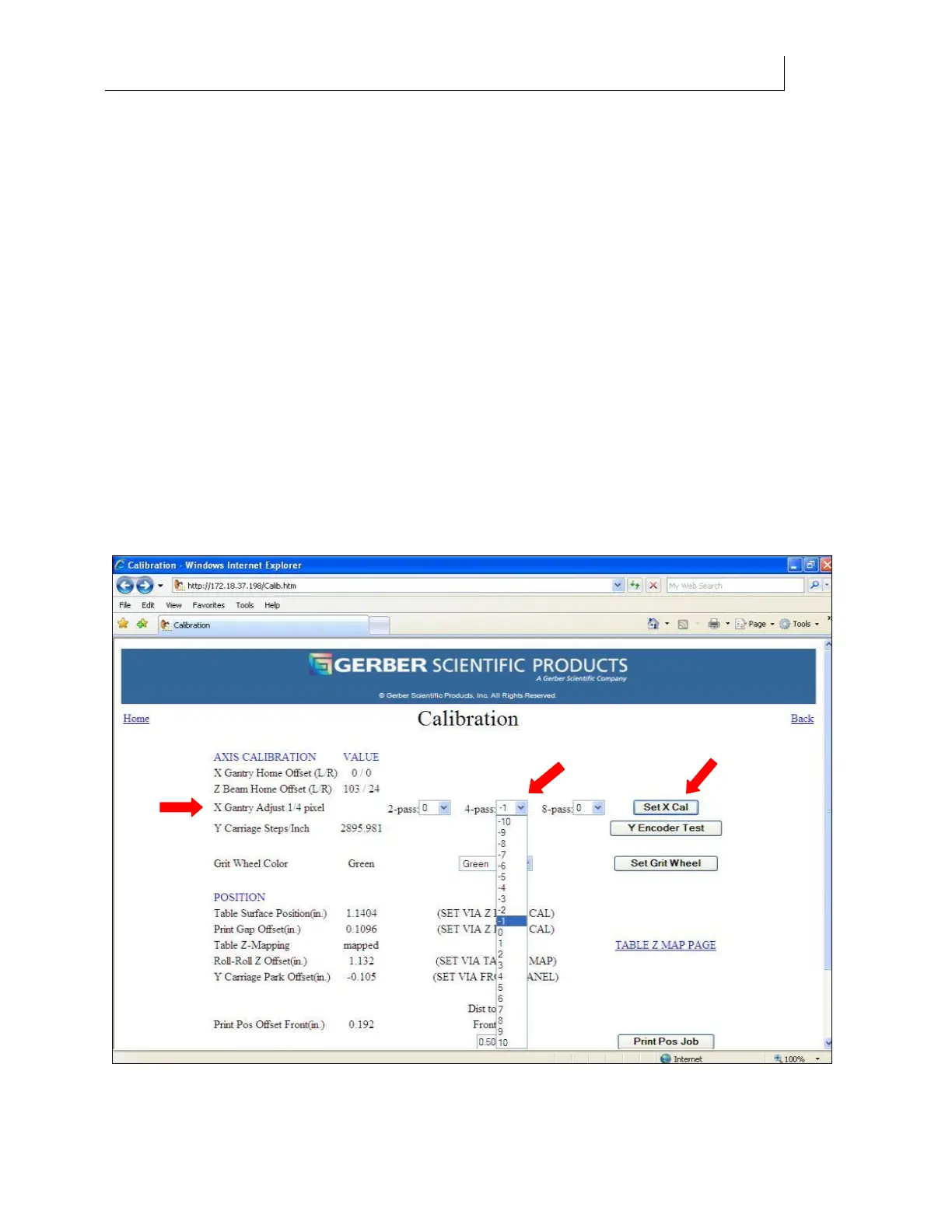

X Gantry Adjustment
The X Gantry Adjustment alters the gantry steps in the X axis of the printer (front to back) for
each of the 3 print pass modes (2-Pass, 4-Pass, and 8-Pass). This alteration is used to increase or
decrease print gaps in order to remove unwanted white spaces between print passes or keep
passes from over-printing and creating darker bands. The X Gantry Adjustment is set on the
Calibration web page.
The X Gantry Adjustment factors of the printer may need to be altered if printed jobs are longer
or shorter than they are expected to be.
