Printer/graphic orientation

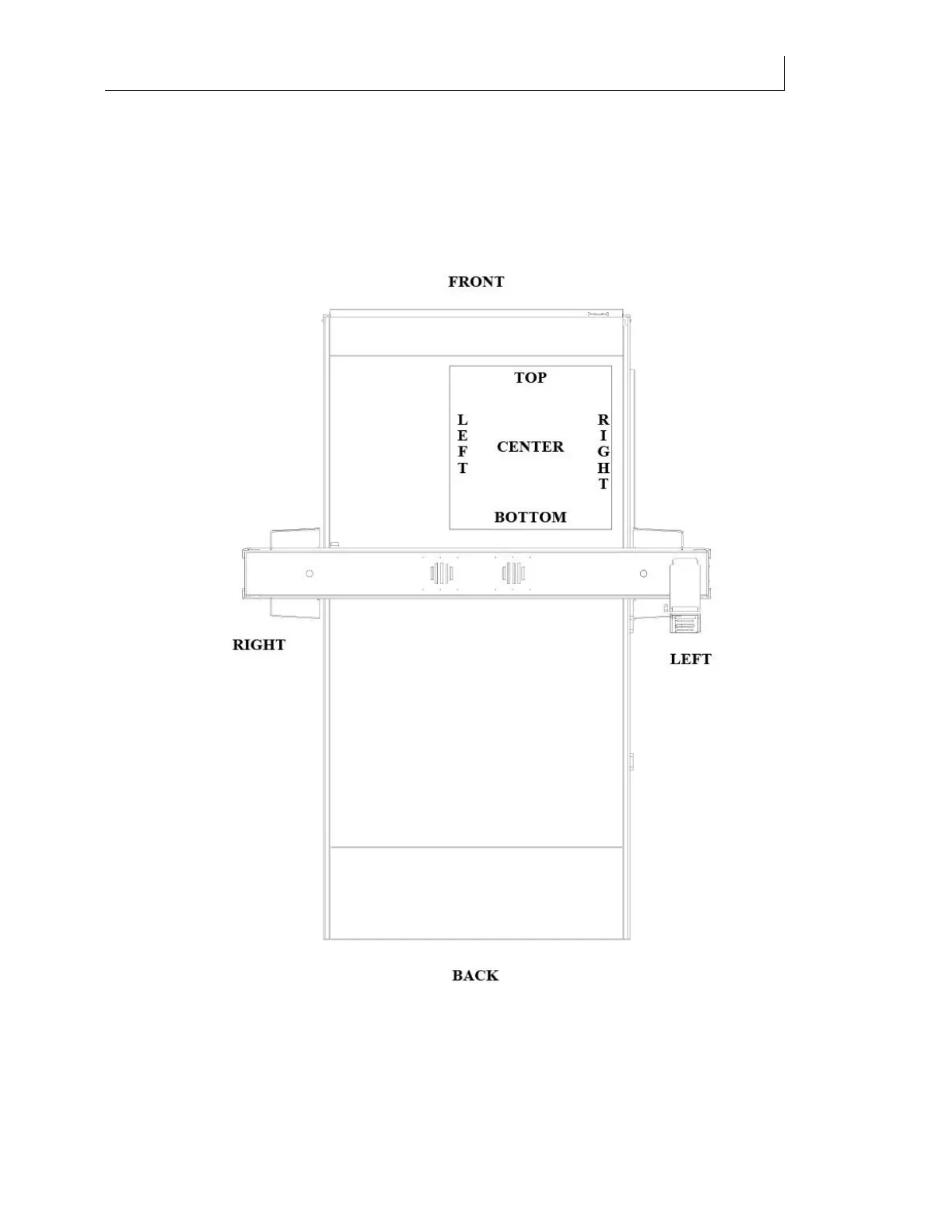

It is important to understand the position of the graphic sent from the RIP software and its
orientation on the flatbed table. The flatbed portion of the table with the maintenance shelf is
considered the front of the printer. Note that the left and right sides of the printer and the
graphic are reversed.
