CHAPTER 2
22
Product Overview
4/29/10 Rev G

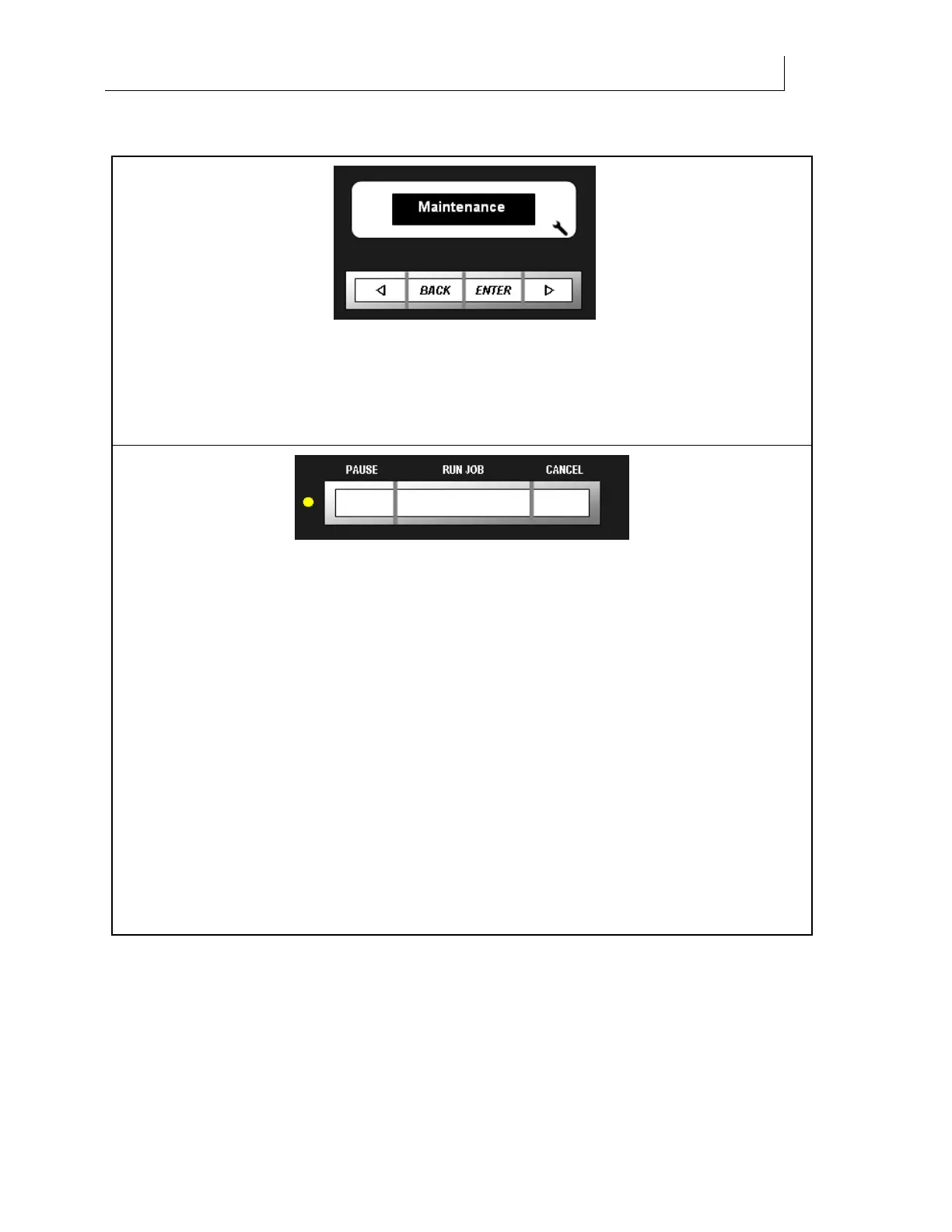

Control Panel keys
The Screen shows menus, instructions, system and
job status, and messages. An icon in the lower right
corner indicates the type of message or sub-menu.
To move through menus:
BACK moves up through the menu tree
ENTER moves down through the menu tree.
Directional navigation keys move side to
side when text is displayed.
The PAUSE key as an individually
functioning key is reserved for
future use; however, it is serving
as a “shift” key, being used in
conjunction with other keys as a
shortcut to initiate desired events.
See table at the end of this section.
RUN JOB begins printing the job
at the printer or the next job to
arrive if in Roll-to-Roll Continuous
mode.
The RUN JOB key also can be
used in conjunction with the
PAUSE key start the NOZZLE
OUT built-in test job.
The CANCEL key aborts a job
after the carriage completes the
current right to left swipe.
If the carriage is moving left to
right, the system will complete the
next right to left pass.
If the gantry is moving it
completes its current step.
If the gantry is performing large
moves at the beginning or end of
the job, it will stop at the current
location.
The carriage moves to the park
position.
Prior to actual cancelation the
system pauses and displays the
confirmation message. Once the
Cancel is confirmed the control
panel beeps and screen shows the
Job Canceled message.
