Firmware Version 1.0.1.12
UCM6510 IP PBX User Manual
DIGITAL TRUNKS
The UCM6510 supports E1/T1/J1 which are physical connection technology used in digital network. T1 is
the North American standard, J1 is used in Japan, whereas E1 is the European standard.
UCM6510 supports four signaling protocols: PRI, MFC/R2, SS7, E&M Immediate and E&M Wink. PRI
provides a varying number of channels depending on the standards in the country of implementation (E1,
T1 or J1); MFC/R2 is a signaling protocol heavily used over E1 trunks; SS7 uses out-of-band signaling,
which travels on a separate, dedicated channel rather than within the same channel as the telephone call,
providing more efficiency and higher security level when the telephone calls are set up. E&M Immediate
and E&M Wink are only valid when using T1 port.
To set up digital trunk on the UCM6510:
1. Go to web UI->PBX->Ports Config->Digital Hardware to configure port type and channels.
2. Go to web UI->PBX->Basic/Call Routes->Digital Trunks to add and edit digit trunk.
3. Go to web UI->PBX->Basic/Call Routes->Outbound Routes and Inbound Routes to configure
outbound and inbound rule for the digital trunk.
DIGITAL HARDWARE CONFIGURATION
Go to web GUI->PBX->Ports Config->Digital Hardware page and configure the following:

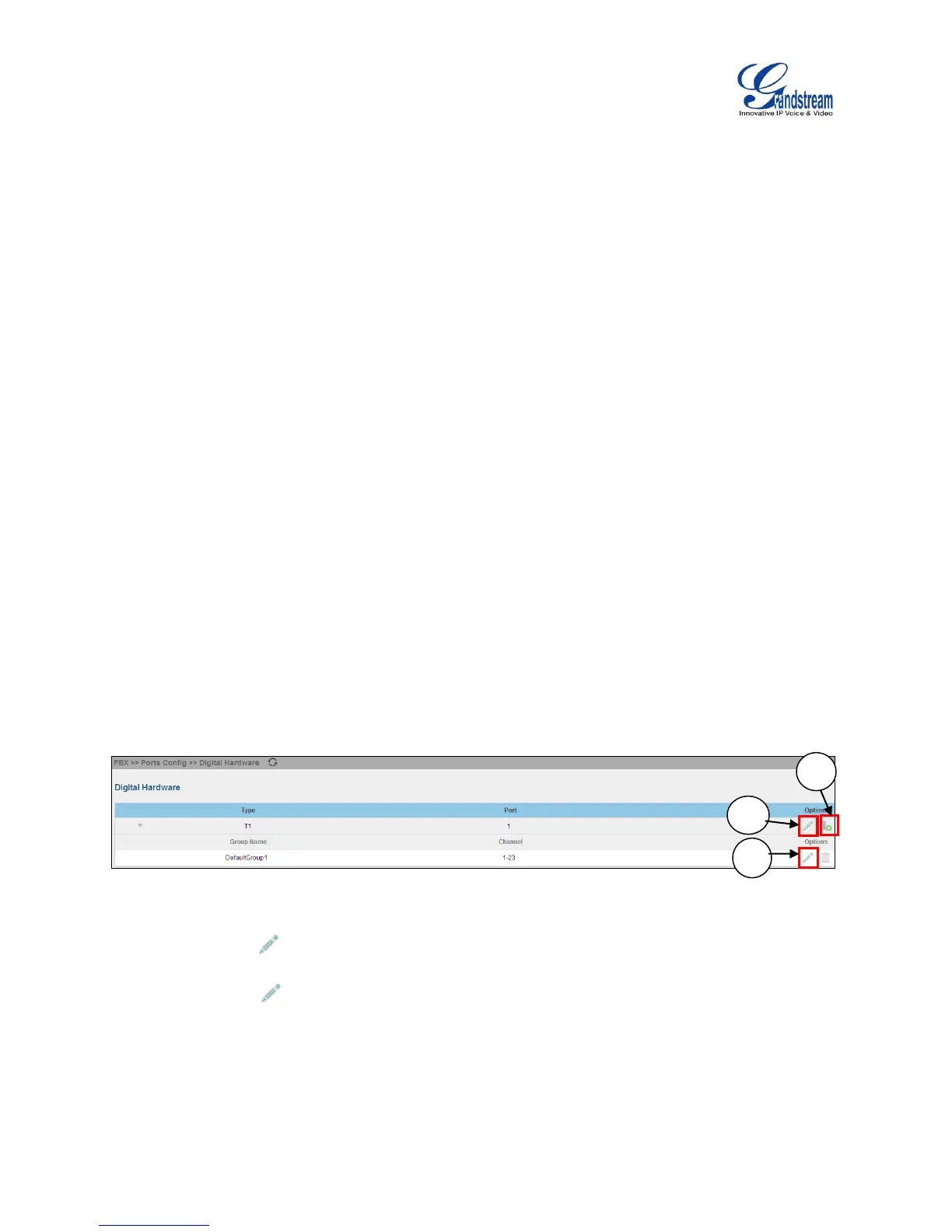

Figure 63: Digital Hardware Configuration
ï‚· Step 1: Click on to edit digital ports. Please see configuration parameters in the tables below.
ï‚· Step 2: Click on to edit group. This assigns channels to be used for the digital port. For E1, 30 B
channels can be assigned to the default group; for T1/J1, 23 B channels can be assigned to the default
group.
ï‚· Step 3: If fewer than 30 B channels for E1 or 23 B channels for T1/J1 are assigned in default group,
