Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 89 of 277

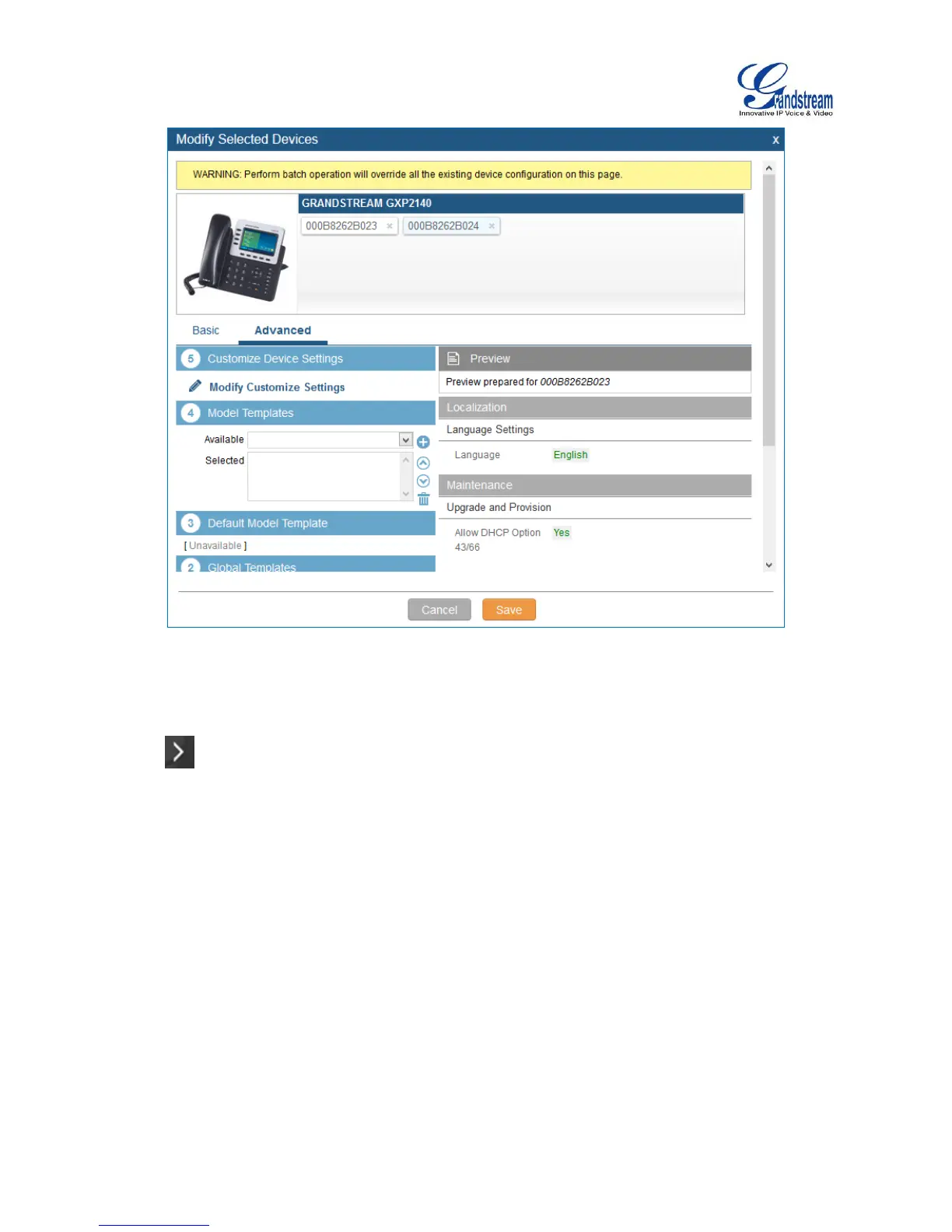

Figure 45: Modify Selected Devices--Same Model

If selected devices are of different models, the configuration dialog is like the following figure. Click

on to view more devices of other models. Users are only allowed to make modifications in Global

Templates and Global Policy level.
