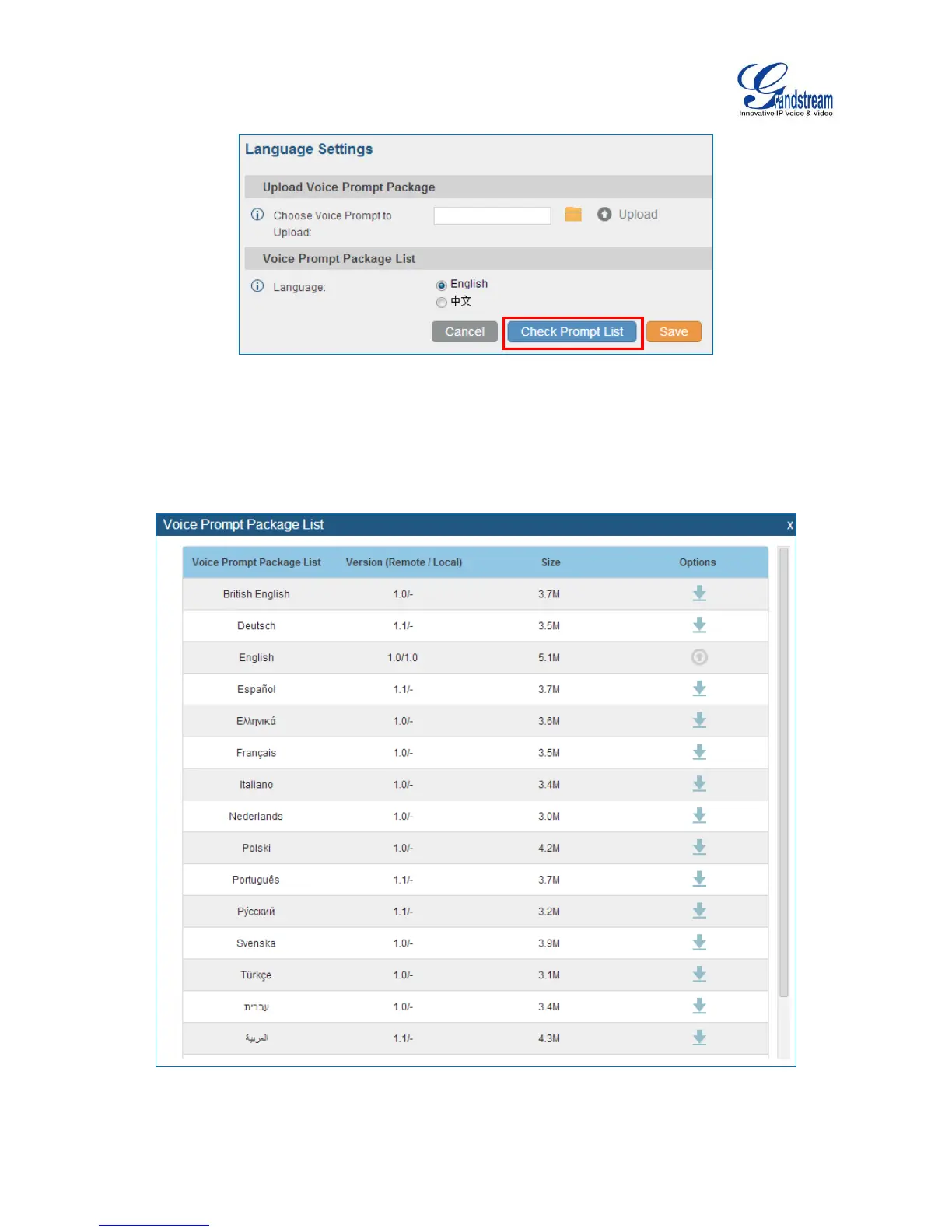

Figure 80: Language Settings for Voice Prompt

A new dialog window of voice prompt package list will be displayed. Users can see the version number

(latest version available V.S. current installed version), package size and options to upgrade or download

the language.

Figure 81: Voice Prompt Package List
