Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 173 of 277

Click on to download the language to the UCM6510. The installation will be automatically started

once the downloading is finished.

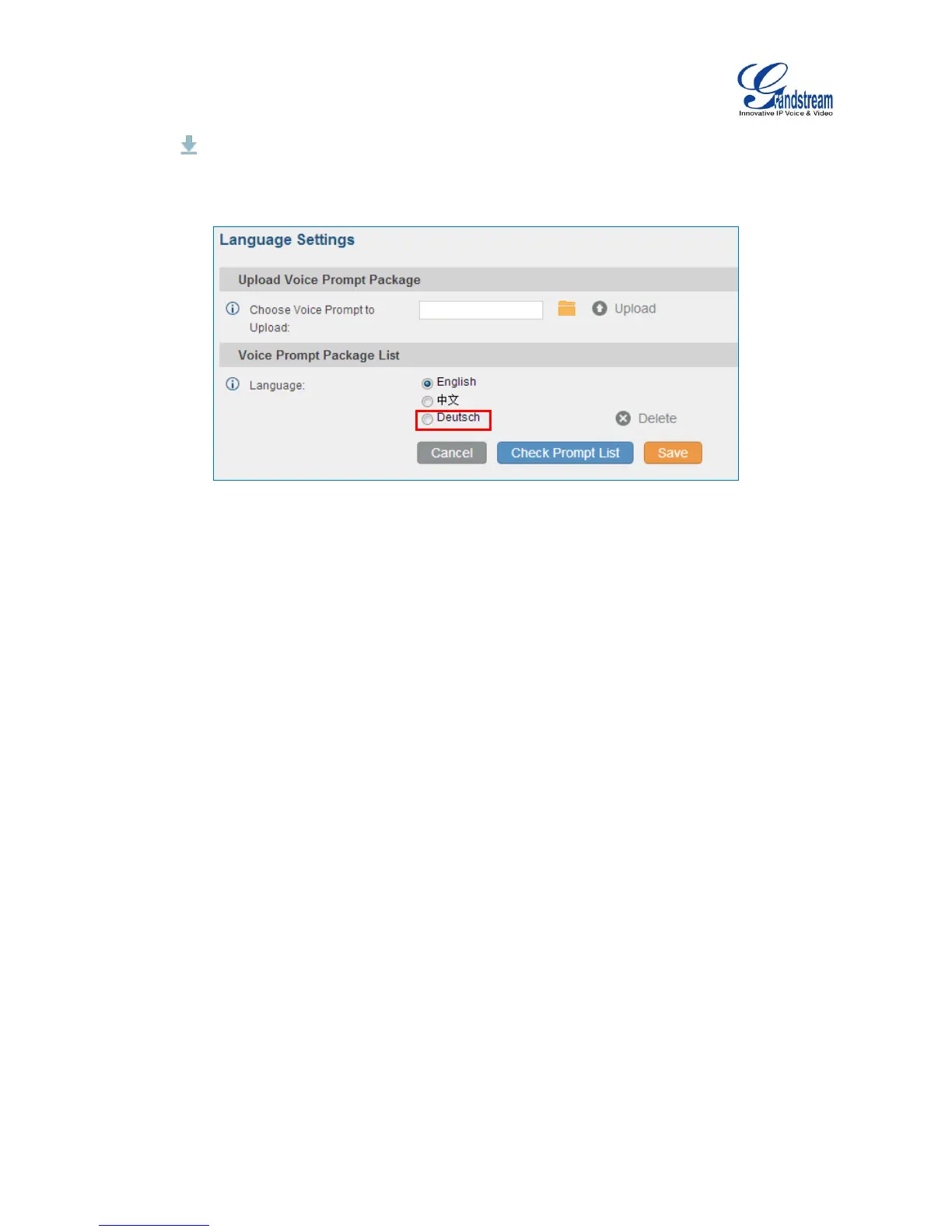

Figure 82: New Voice Prompt Language Added

A new language option will be displayed after successfully installed. Users then could select it to apply in

the UCM6510 system voice prompt or delete it from the UCM6510.
