Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 93 of 277

7. For each of the 5 phones used by English speaking customer support, in “Basic” settings select an

available extension for account 1 and click on “Save”. Then click on “Advanced” settings tab to bring

up the following dialog. Users will see the English support template is applied since this is the default

model template. A preview of the device settings will be listed on the right side.

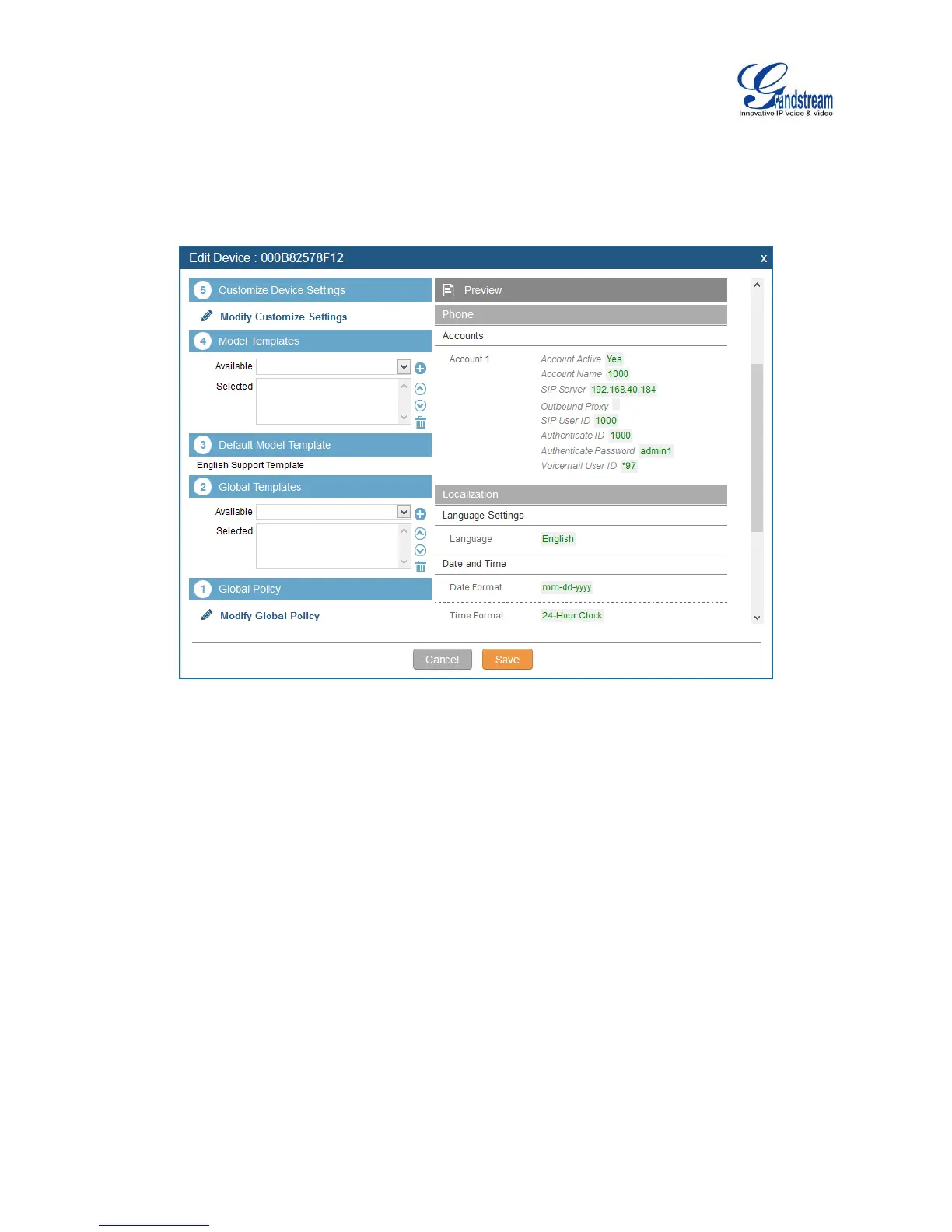

Figure 49: Zero Config Sample - Device Preview 1

8. For the 3 phones used by Spanish support, in “Basic” settings select an available extension for

account 1 and click on “Save”. Then click on “Advanced” settings tab to bring up the following dialog.
