UCM6510 IP PBX User Manual

Page 88 of 277

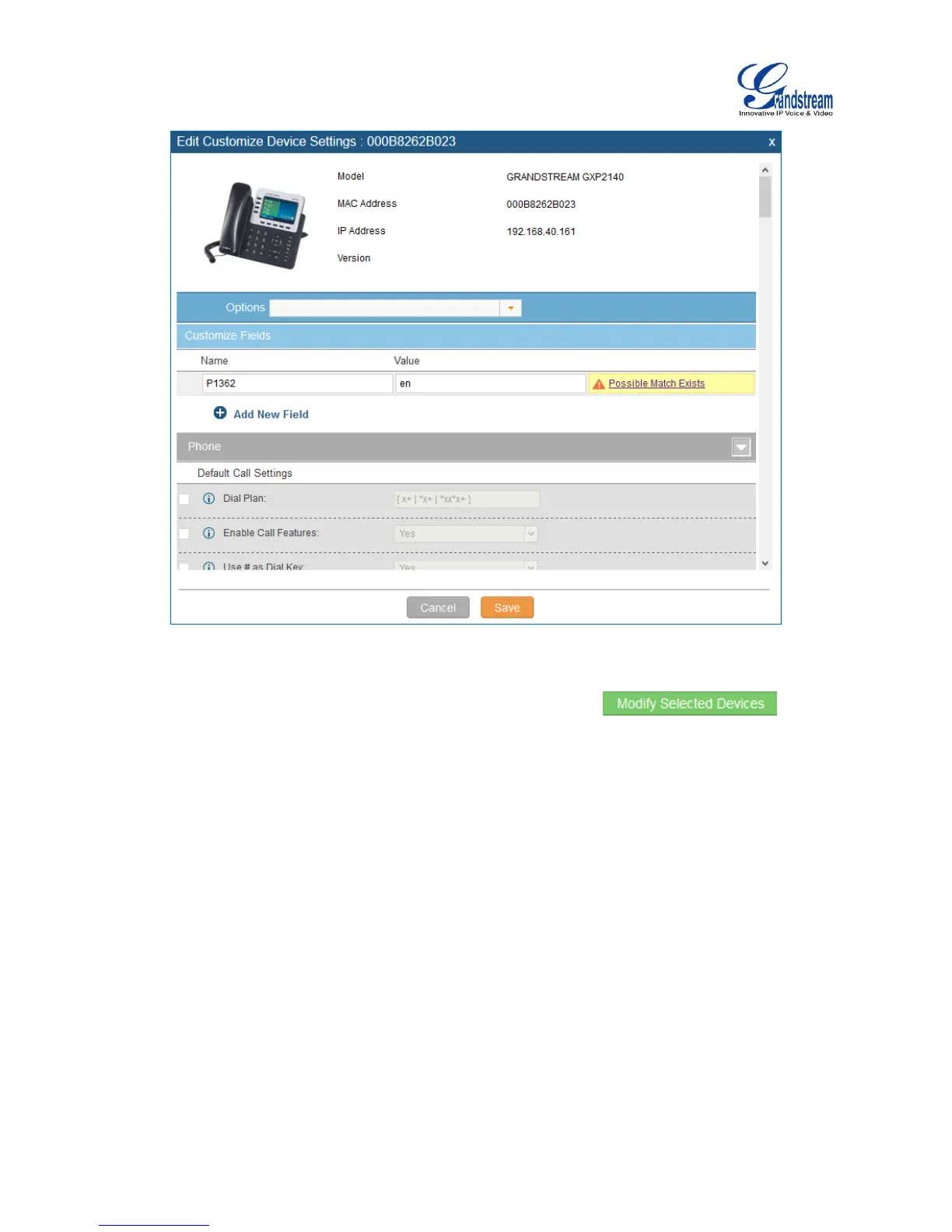

Figure 44: Add P Value in Customize Device Settings

1. Select multiple devices that need to be modified and then click on to batch

modify devices.

If selected devices are of the same model, the configuration dialog is like the following figure.

Configurations in five levels are all available for users to modify.

Default Chapter3
