Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 212 of 277

1. Group Name

Enter the Group Name. This is to identify the Dial By Name group. The Dial By Name group can be

used as the destination for inbound route and key pressing event for IVR. The group name defined

here will show up in the destination list when configuring IVR and inbound route.

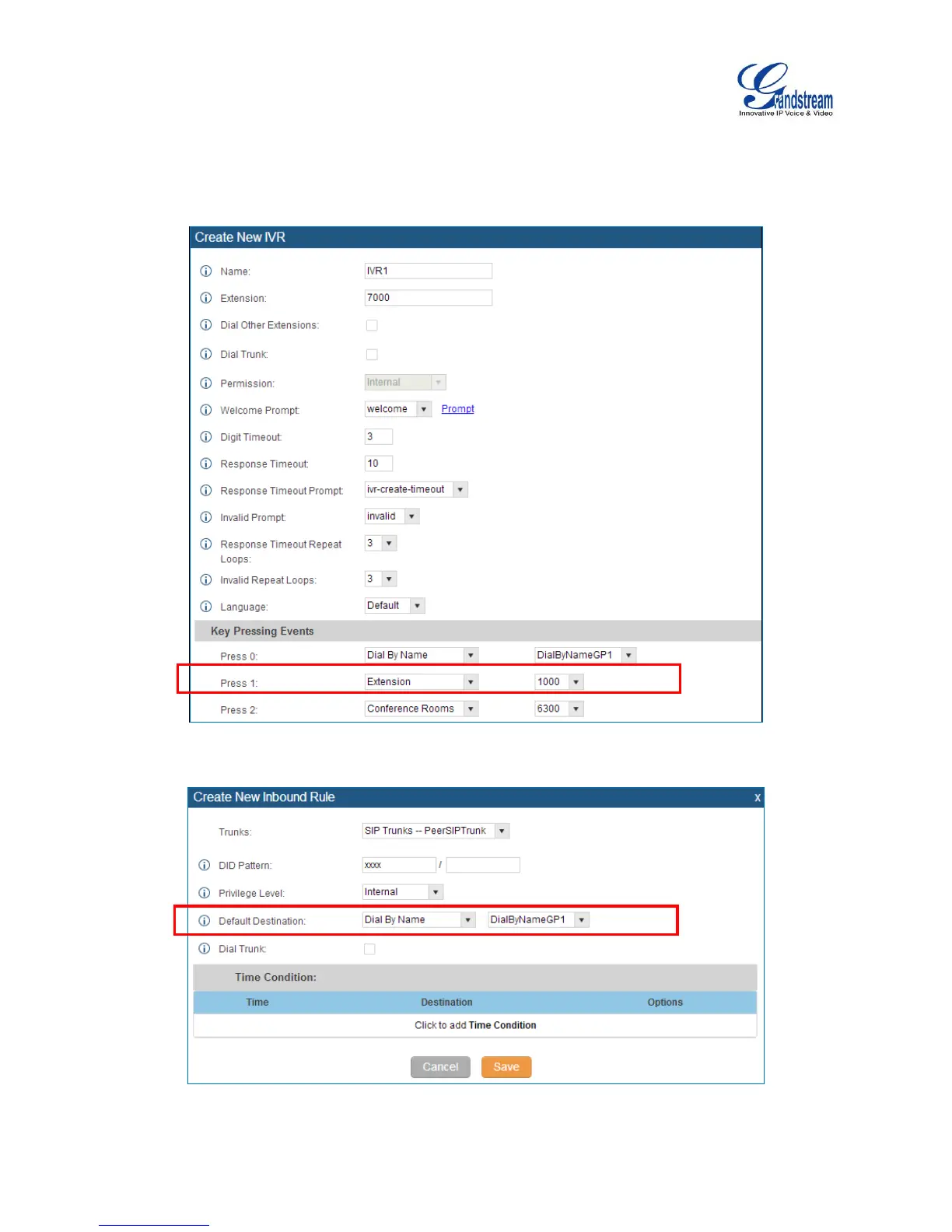

Figure 107: Dial By Name Group In IVR Key Pressing Events

Figure 108: Dial By Name Group In Inbound Route
