Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 273 of 277

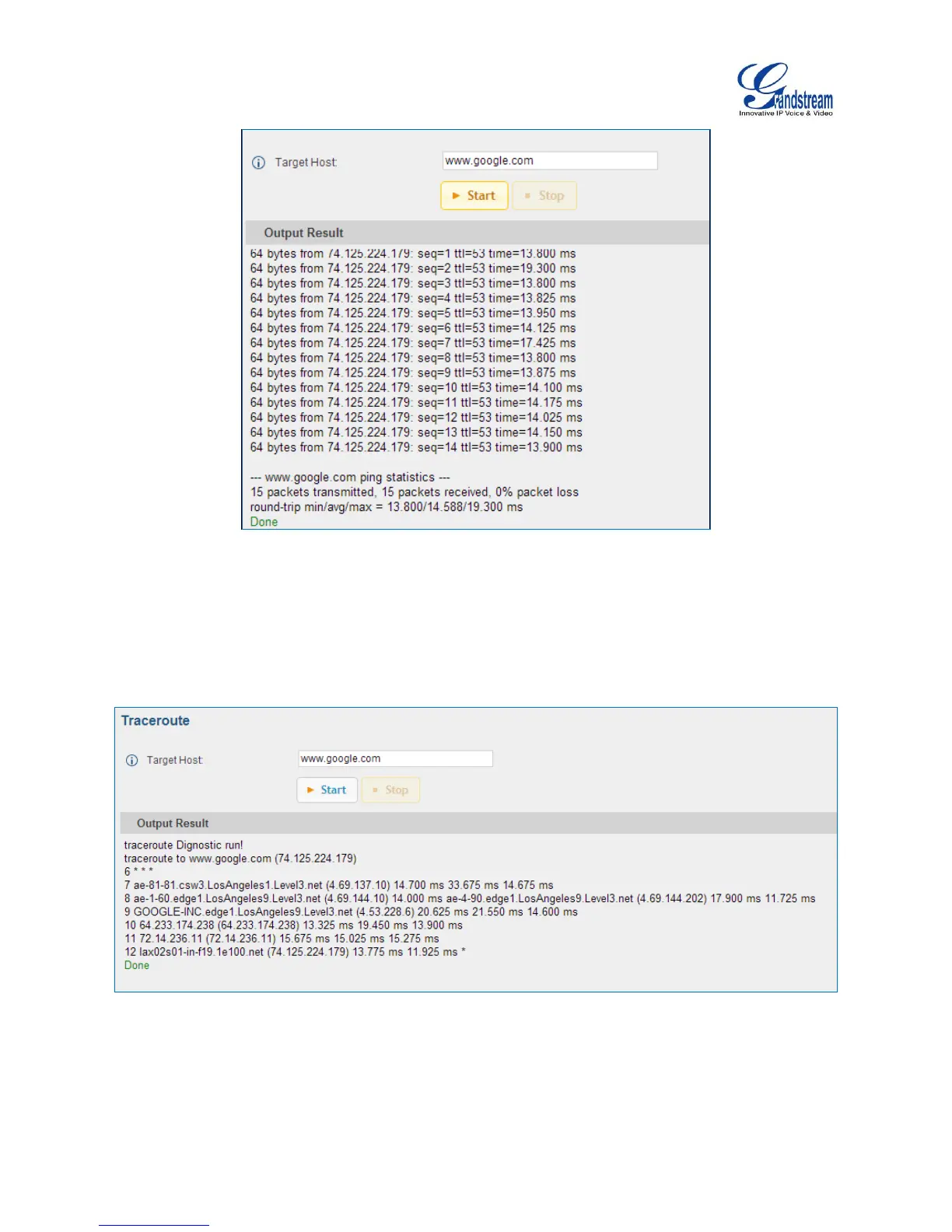

Figure 149: PING

TRACEROUTE

Enter the target host in host name or IP address. Then press "Start" button. The output result will

dynamically display in the window below.

Figure 150: Traceroute
