Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 32 of 277

Russian

Italian

Polish

German

Czech

Users can select the displayed language in web GUI login page, or at the upper right of the web GUI after

logging in.

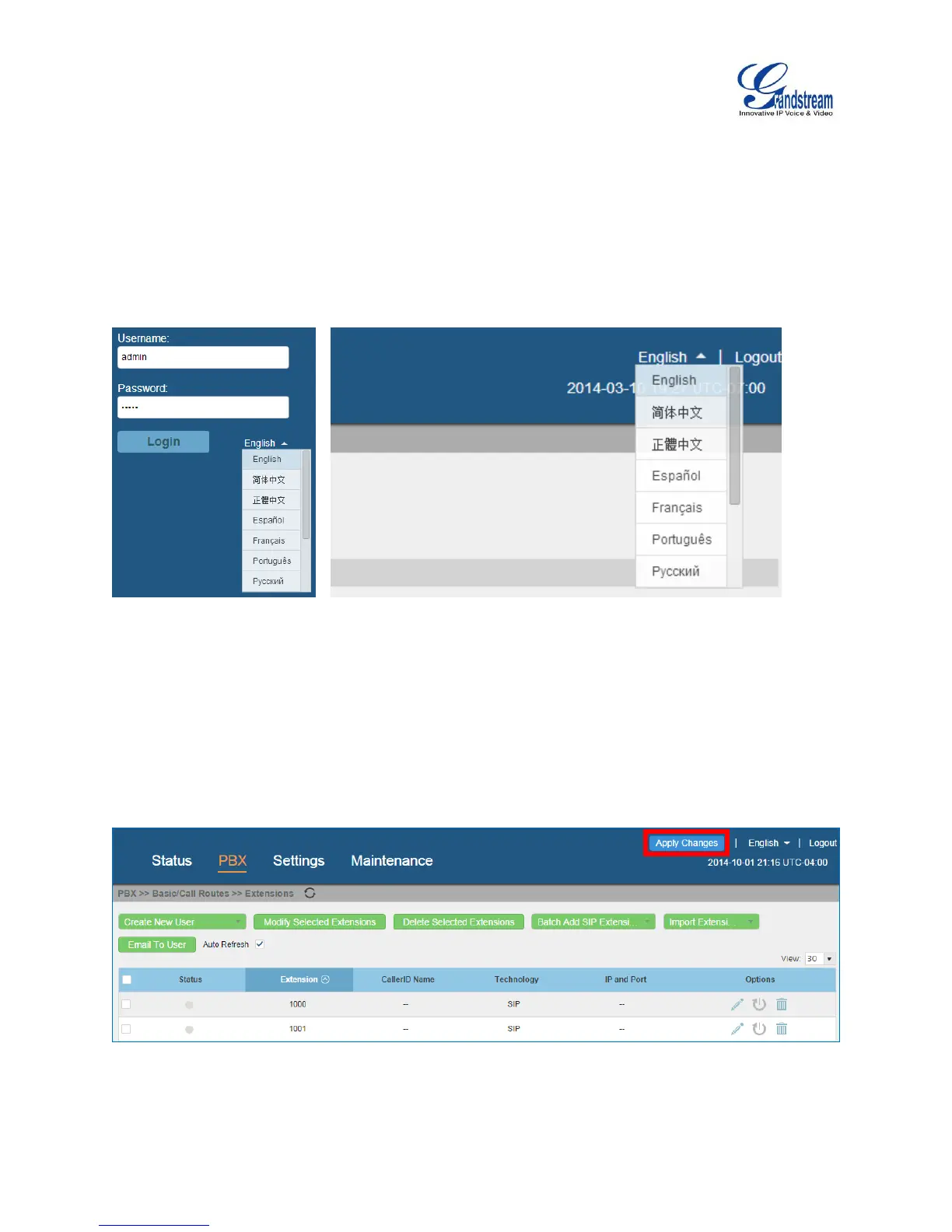

Figure 5: UCM6510 web GUI Language

SAVE AND APPLY CHANGES

Click on "Save" button after configuring the web GUI options in one page. After saving all the changes,

make sure click on "Apply Changes" button on the upper right of the web page to submit all the changes. If

the change requires reboot to take effect, a prompted message will pop up for you to reboot the device.

Figure 6: UCM6510 web GUI: Apply Changes
