Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 148 of 277

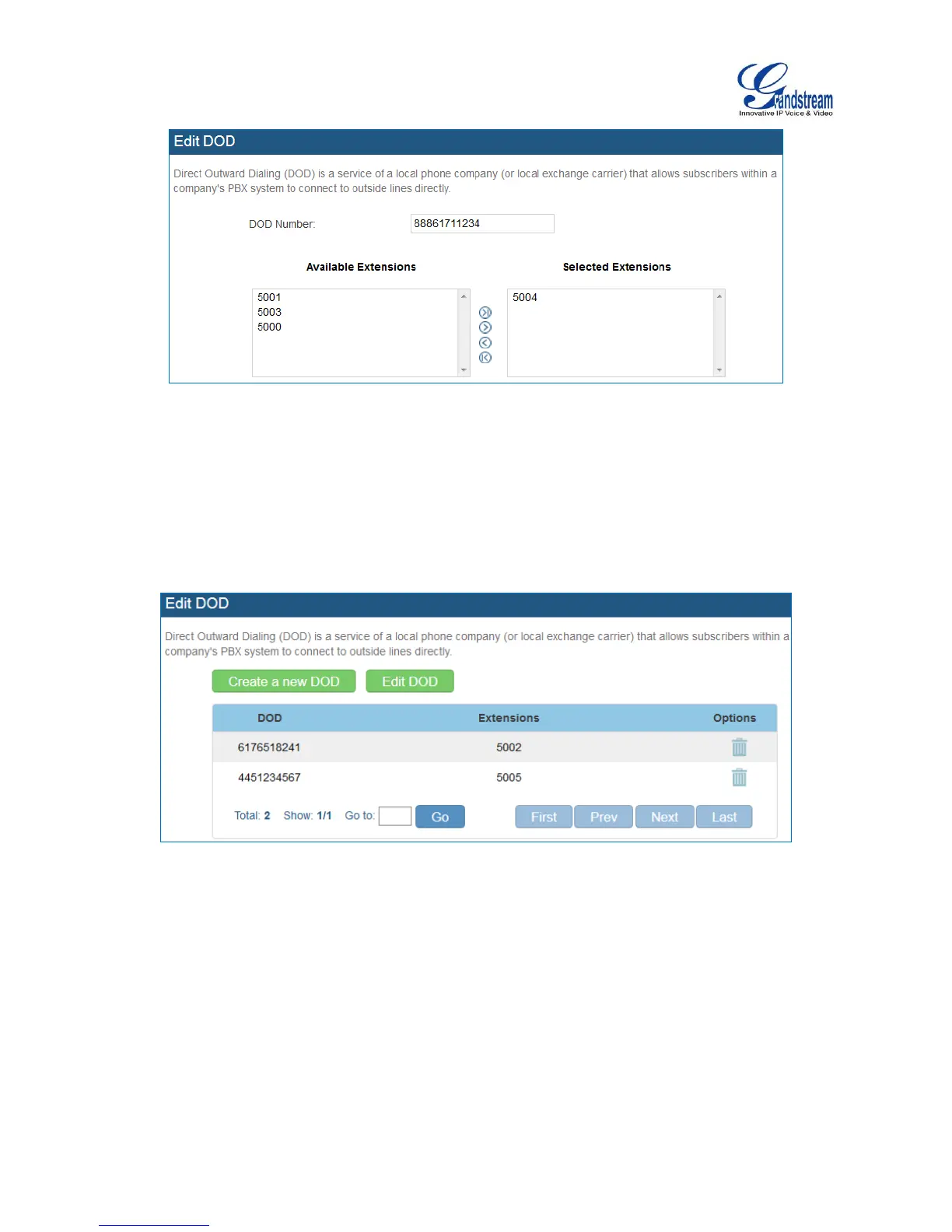

Figure 67: DOD extension selection

6. Click "Save" at the bottom.

Once completed, the user will return to the Edit DOD page that shows all the extensions that are

associated to a particular DOD.

Figure 68: Edit DOD
