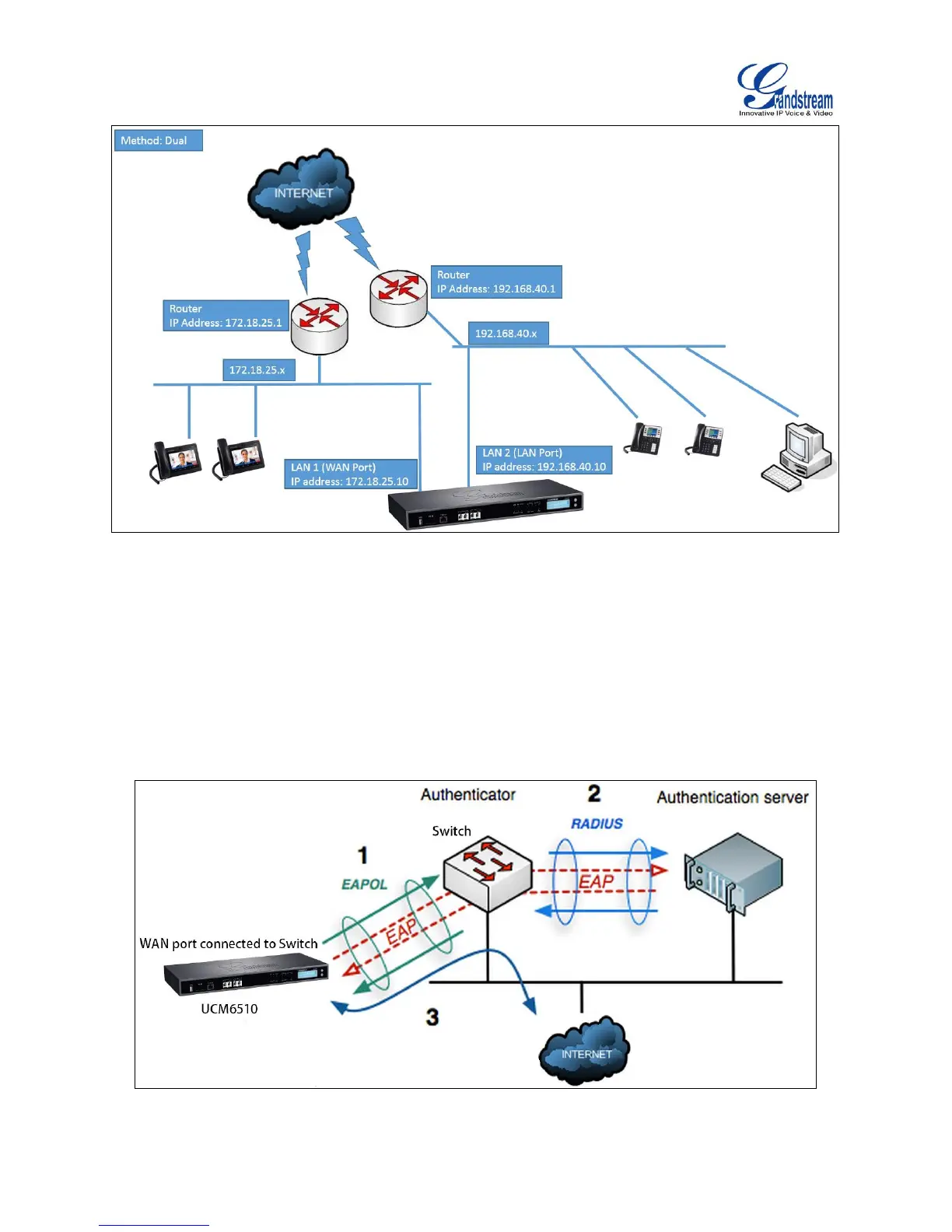

Figure 9: UCM6510 Network Interface Method: Dual
802.1X
IEEE 802.1X is an IEEE standard for port-based network access control. It provides an authentication
mechanism to device before the device is allowed to access Internet or other LAN resources. The
UCM6510 supports 802.1X as a supplicant/client to be authenticated. The following diagram and figure
show UCM6510 uses 802.1X mode “EAP-MD5” on WAN port as client in the network to access Internet.
Figure 10: UCM6510 Using 802.1X as Client
