Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 237 of 277

STATUS AND REPORTING

PBX STATUS

The UCM6510 monitors the status for Trunks, Extensions, Queues, Conference Rooms, Interfaces, Digital

Channels and Parking lot. It presents administrators the real time status in different sections under web

GUI->Status->PBX Status.

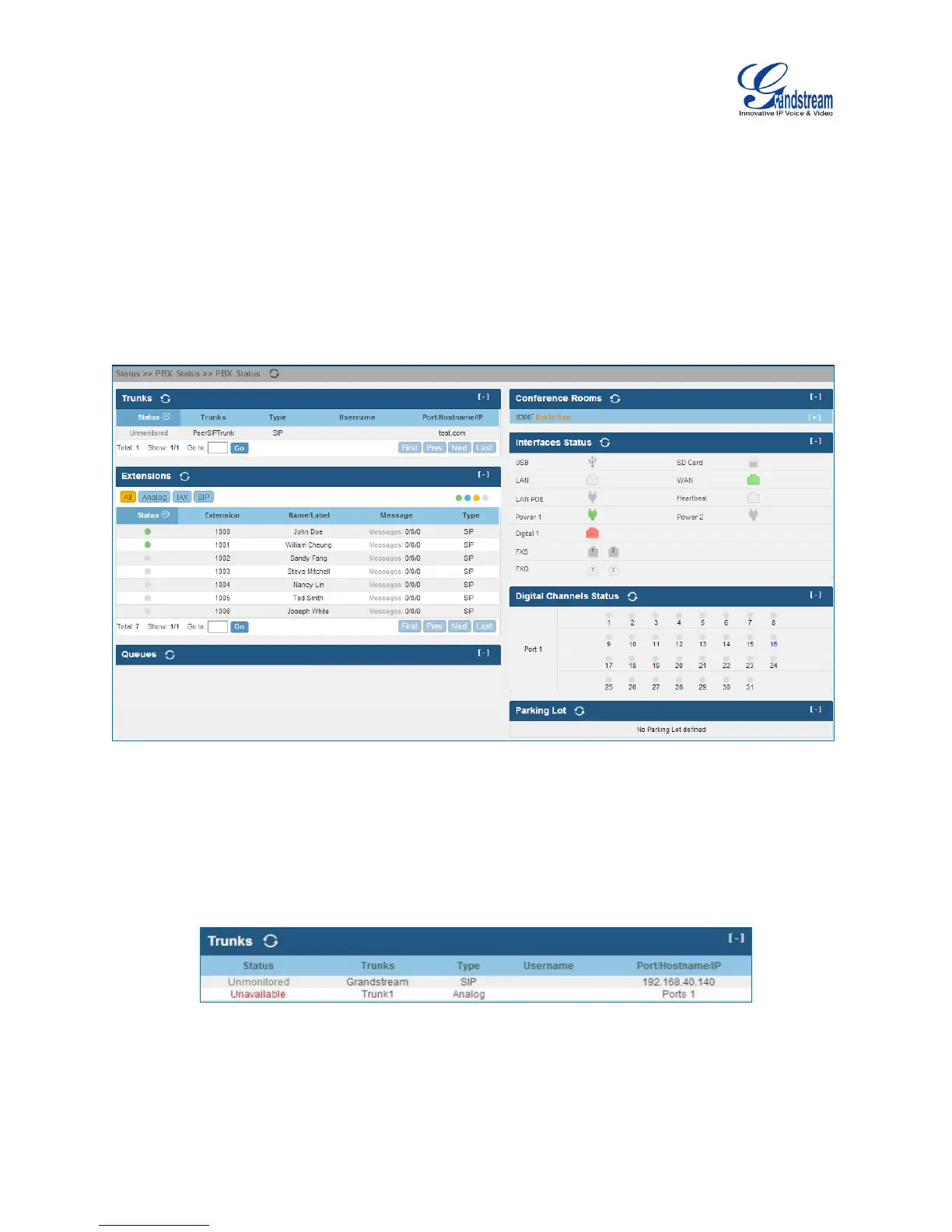

Figure 114: Status->PBX Status

TRUNKS

Users could see all the configured trunk status in this section.

Figure 115: Trunk Status
