UCM6510 IP PBX User Manual
Page 214 of 277
ACTIVE CALLS AND MONITOR
The active calls on the UCM6510 are displayed in web UI->Status->Active Calls page. Users can monitor
call status, hang up active call(s) as well as barge in active call(s) in real time manner.
ACTIVE CALLS STATUS

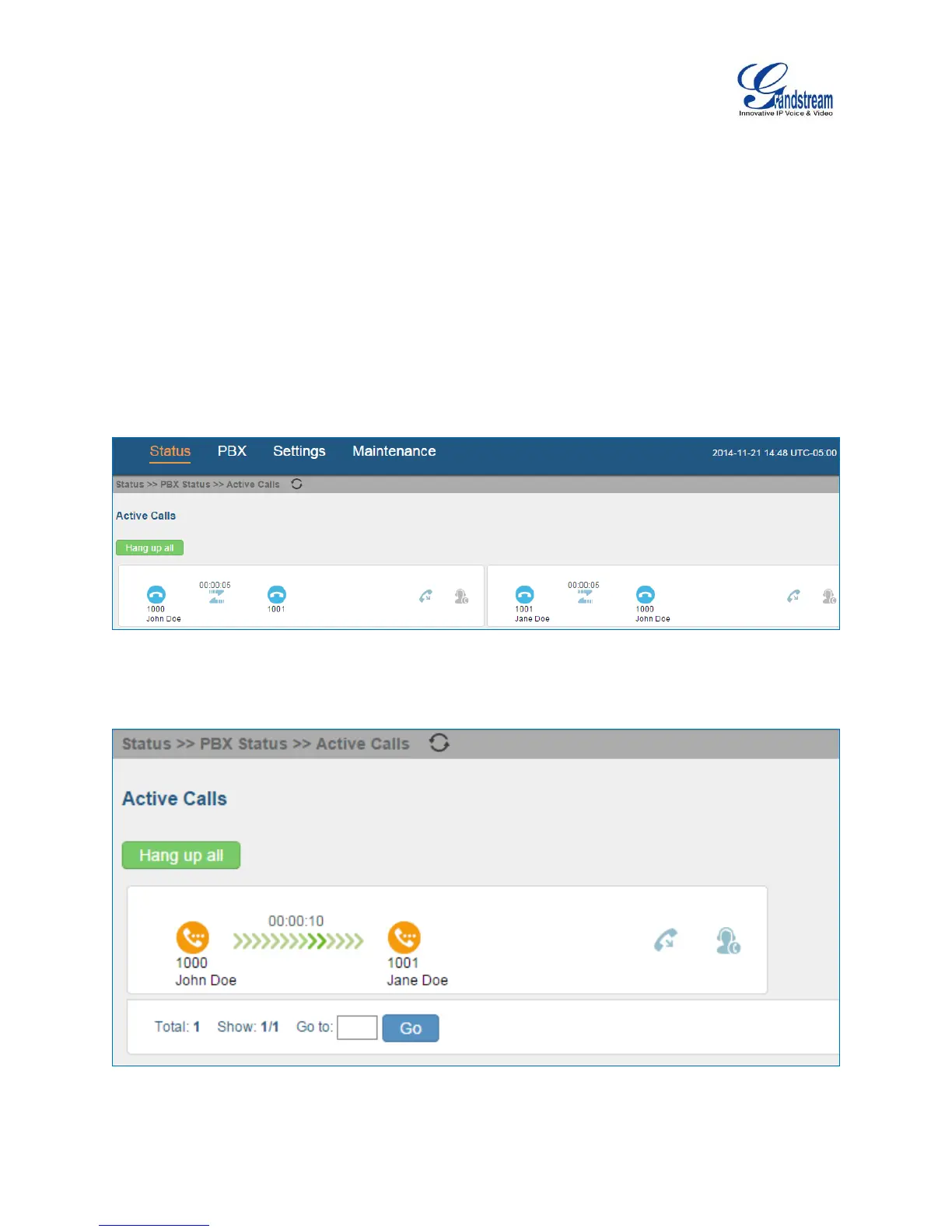

To view the status of active calls, navigate to web GUI->Status->Active Calls. The following figure shows
extension 1000 is calling 1001. 1001 is ringing.
Figure 110: Status->PBX Status->Active Calls - Ringing
The following figure shows the call between 1000 and 1001 is established.
Figure 111: Status->PBX Status->Active Calls – Call Established
