Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 38 of 277

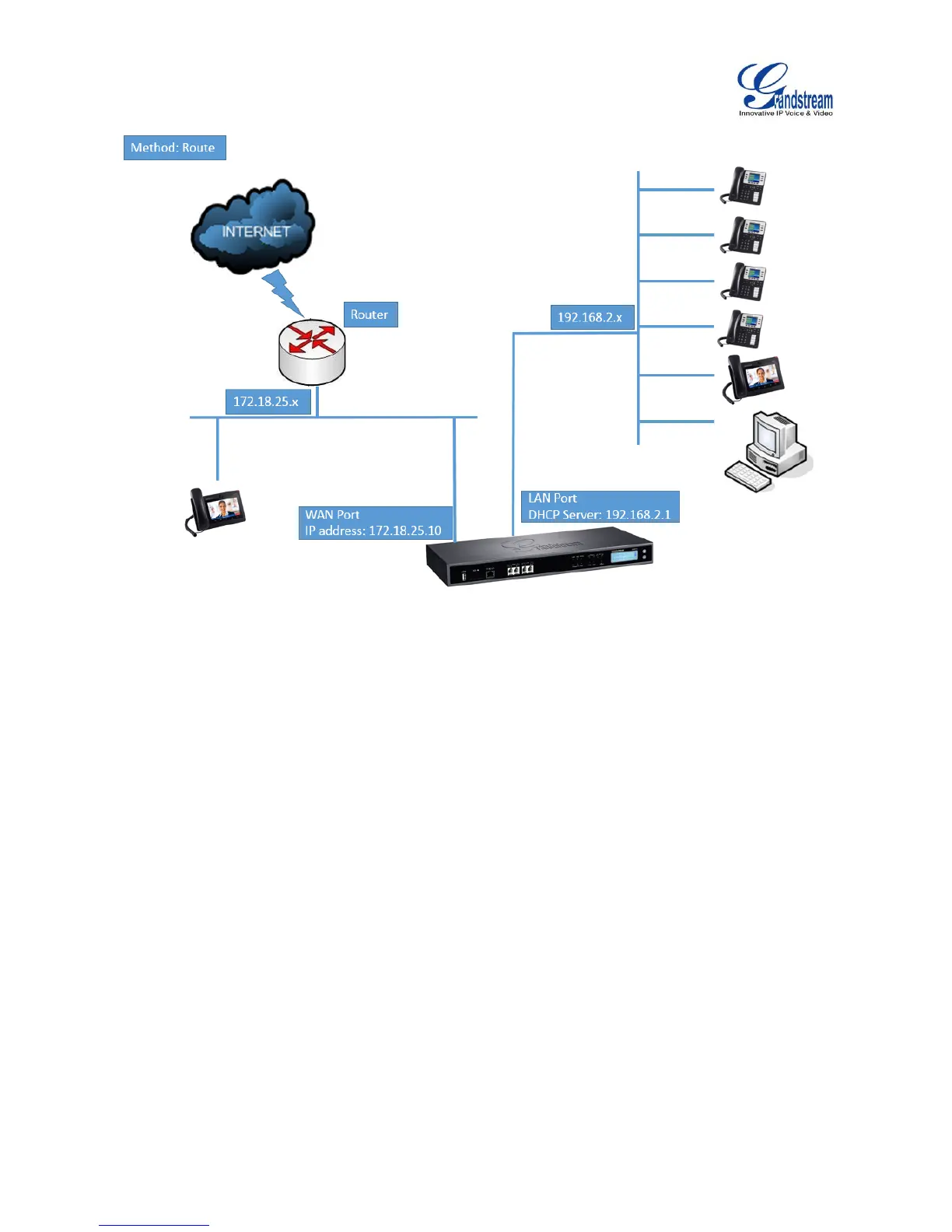

Figure 7: UCM6510 Network Interface Method: Route

 Method: Switch

WAN port interface is used for uplink connection; LAN port interface is used as bridge for PC

connection.
