Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 95 of 277

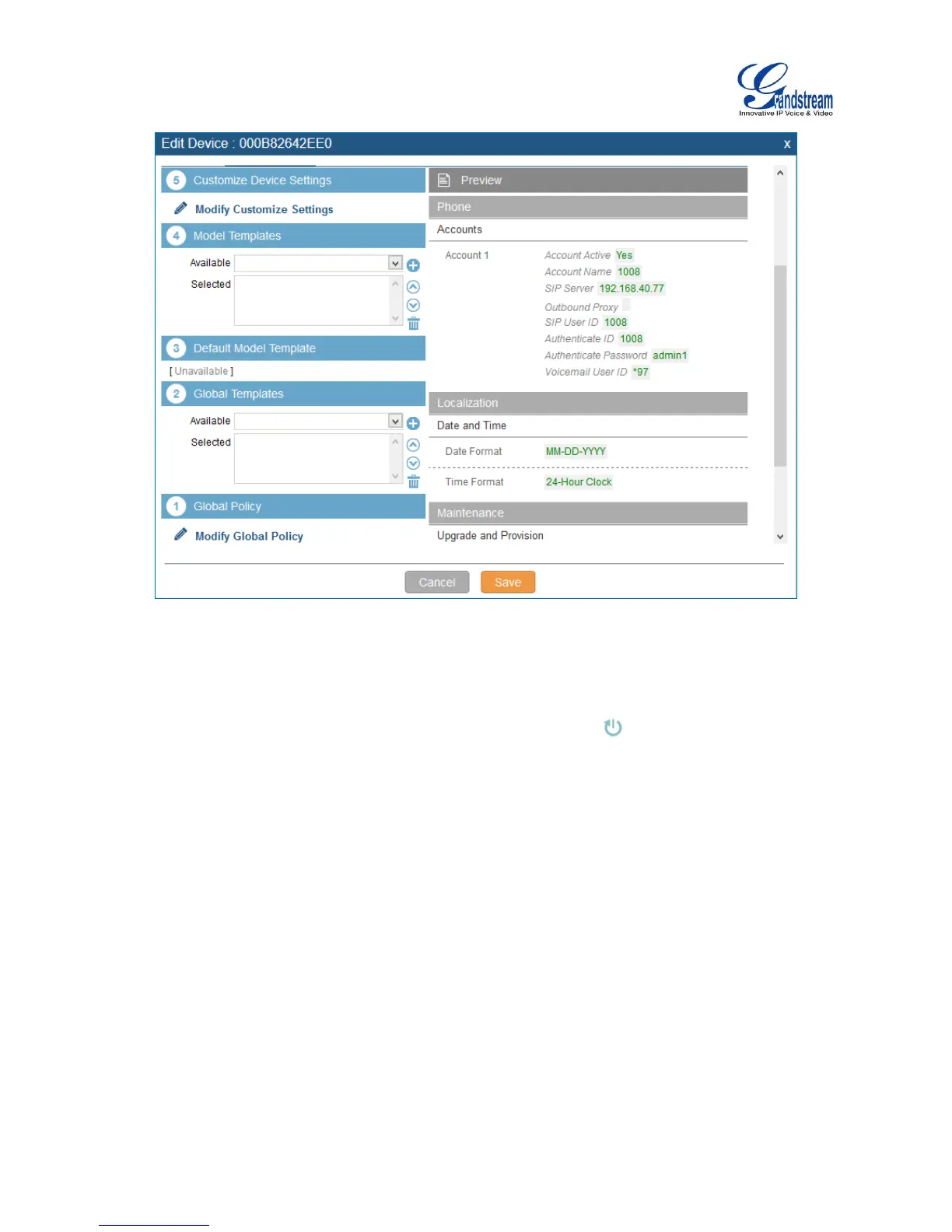

Figure 51: Zero Config Sample - Device Preview 3

10. Click on “Apply Changes” to apply saved changes.

11. On the web UI->PBX->Zero Config->Zero Config page, click on to send NOTIFY to trigger the

device to download config file from UCM6510.

Now all the 9 phones in the network will be provisioned with an unique extension registered on the

UCM6510. 3 of the phones will be provisioned to display Spanish on LCD and the other 5 will be

provisioned to display English on LCD. The GXV3275 used by the supervisor will be provisioned to use the

default language on LCD display since it’s not specified in the global policy.
