Firmware Version 1.0.1.12

UCM6510 IP PBX User Manual

Page 263 of 277

UPGRADING AND MAINTENANCE

UPGRADING

The UCM6510 can be upgraded to a new firmware version remotely or locally. This section describes how

to upgrade your UCM6510 via network or local upload.

UPGRADING VIA NETWORK

The UCM6510 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for the

TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP, HTTP or

HTTPS; the server name can be FQDN or IP address.

Examples of valid URLs:

firmware.grandstream.com

The upgrading configuration can be accessed via web GUI->Maintenance->Upgrade.

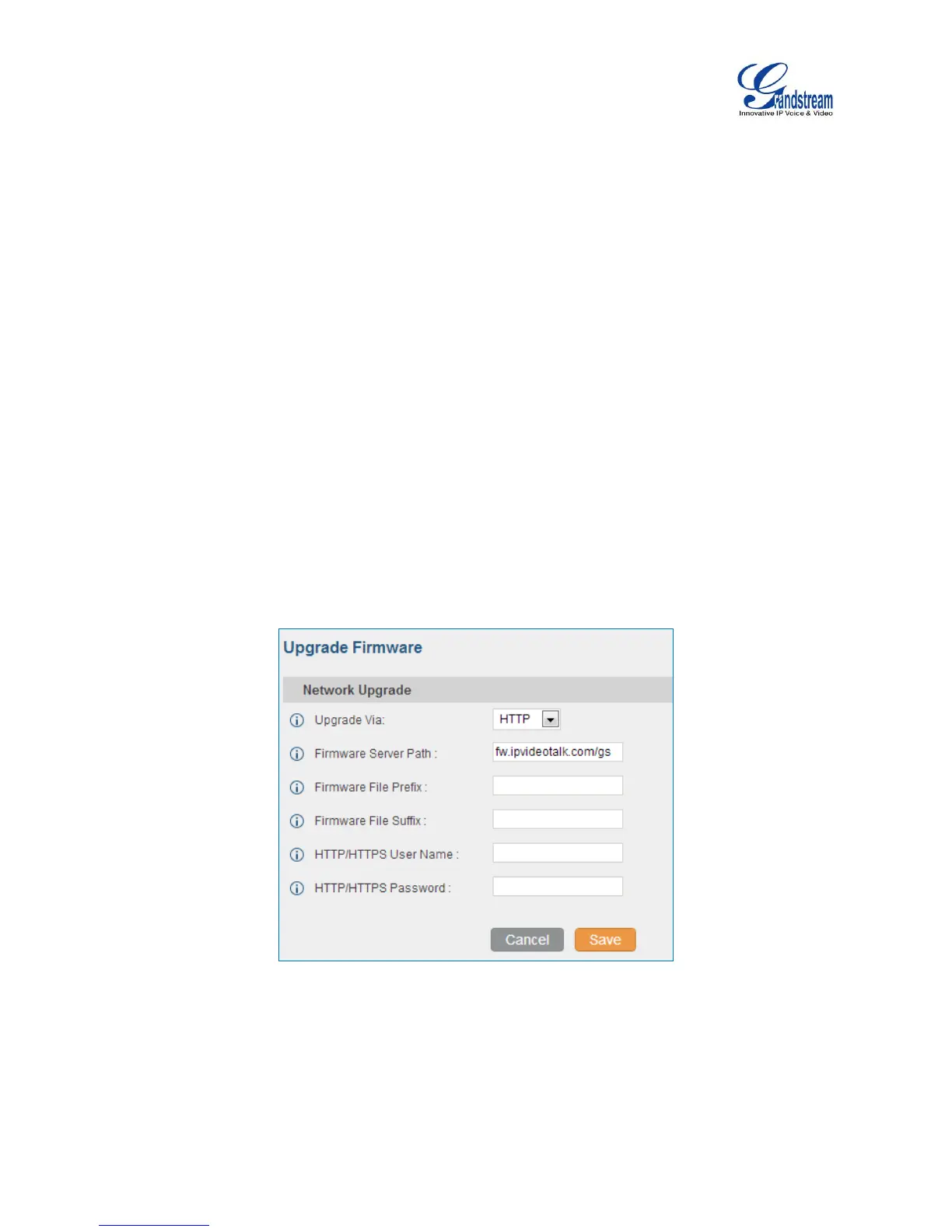

Figure 138: Network Upgrade
