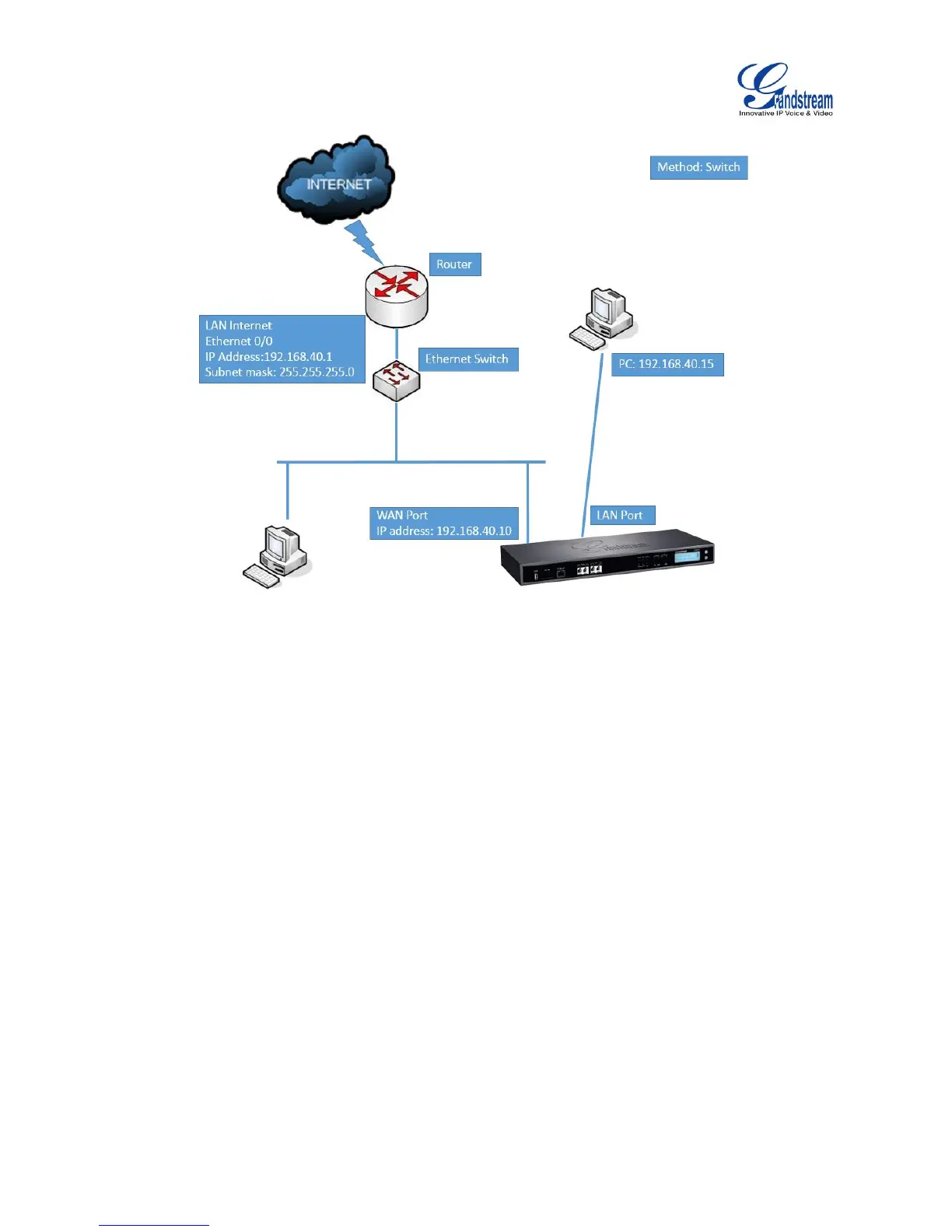

Figure 8: UCM6510 Network Interface Method: Switch

 Method: Dual

Both WAN port and LAN port are used for uplink connection. WAN port will be mapped to LAN 1

interface; LAN port will be mapped to LAN 2 interface. Users will need assign LAN 1 or LAN 2 as the

default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this

interface.
