H3C WA Series User Manual

225

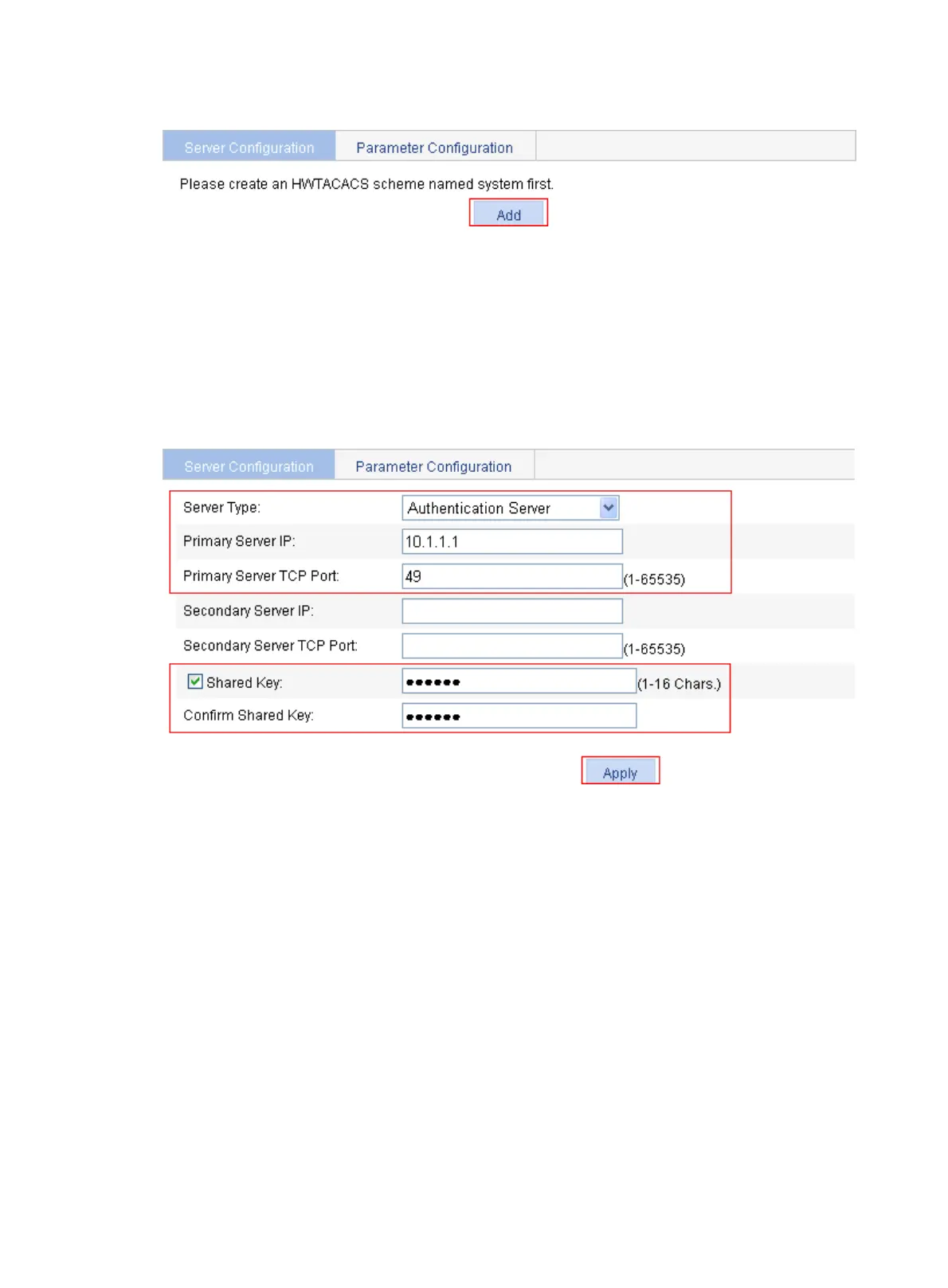

Figure 219 Create an HWTACACS scheme
2. Configure the HWTACACS authentication server:
a. Select Authentication Server as the server type.
b. Enter 10.1.1.1 as the IP address of the primary server.
c. Enter 49 as the authentication port number of the primary server.
d. Select the Shared Key box, enter expert as the shared key, and then confirm the password.
e. Click Apply.
Figure 220 Configure the HWTACACS authentication server
3. Configure the HWTACACS authorization server:
a. On the page as shown in Figure 220, selec
t Authorization Server as the server type.
b. Enter 10.1.1.1 as the IP address of the primary server.
c. Enter 49 as the authorization port number of the primary server.
d. Select the Shared Key box, enter expert as the shared key, and then confirm the password.
e. Click Apply.
4. Configure the HWTACACS accounting server:
a. On the page as shown in Figure 220, selec
t Accounting Server as the server type.
b. Enter 10.1.1.1 as the IP address of the primary server.
c. Enter 49 as the TCP port of the primary server.
d. Select the Shared Key box, enter expert as the shared key, and then confirm the password.
e. Click Apply.
5. Configure the parameters for communication between the AP and the HWTACACS server:
a. From the navigation tree, select Authentication > HWTACACS.
