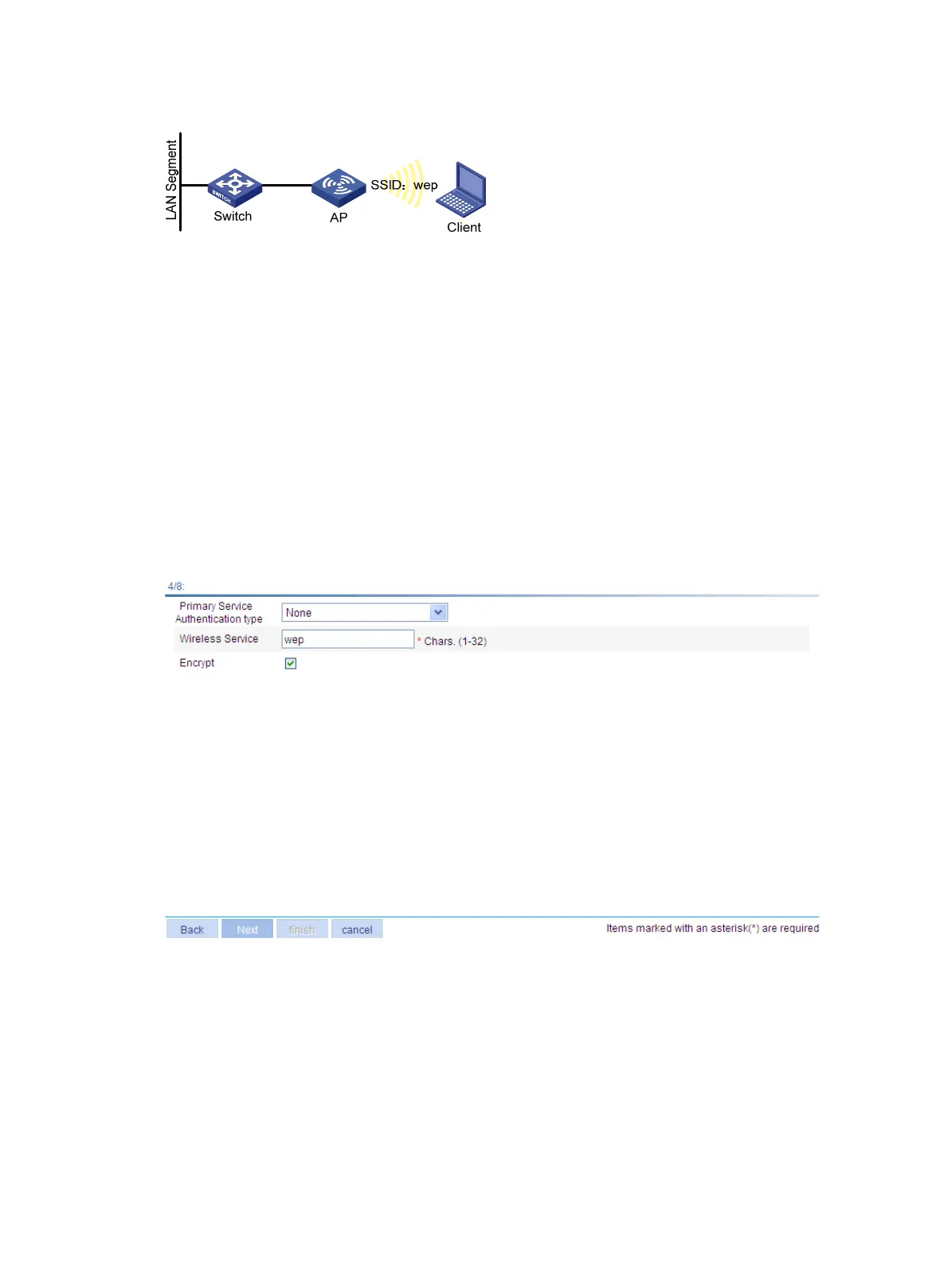

Figure 14 Network diagram
Configuring the AP
1. Perform basic configurations:
From the navigation tree, select Quick Start to enter the home page of the Quick Start wizard. Configure
time parameters, login password, and login IP address as needed.
2. Configure wireless service:
a. On the IP configuration page, click Next to enter the wireless configuration page.
b. To configure wireless service:
Use default setting for Primary Service Authentication type.
Specify the SSID as wep.
Select the Encrypt box.
Figure 15 Wireless configuration page
c. Click Next to enter the encryption configuration page.
d. To perform encryption configuration:
Select WEP40 for Encryption Mode.
Select 1 for Key ID.
Select 5 Alphanumeric Chars for Key Length.
Enter 123 45 for WEP Key.
