H3C WA Series User Manual

321
d. On the page that appears, enter the shared key expert, enter the authentication and
accounting ports 1812 and 1813, select LAN Access Service from the Service Type list, select
H3C from the Access Device Type list, select or manually add an access device with the IP
address 10.18.1.1, and click Apply.

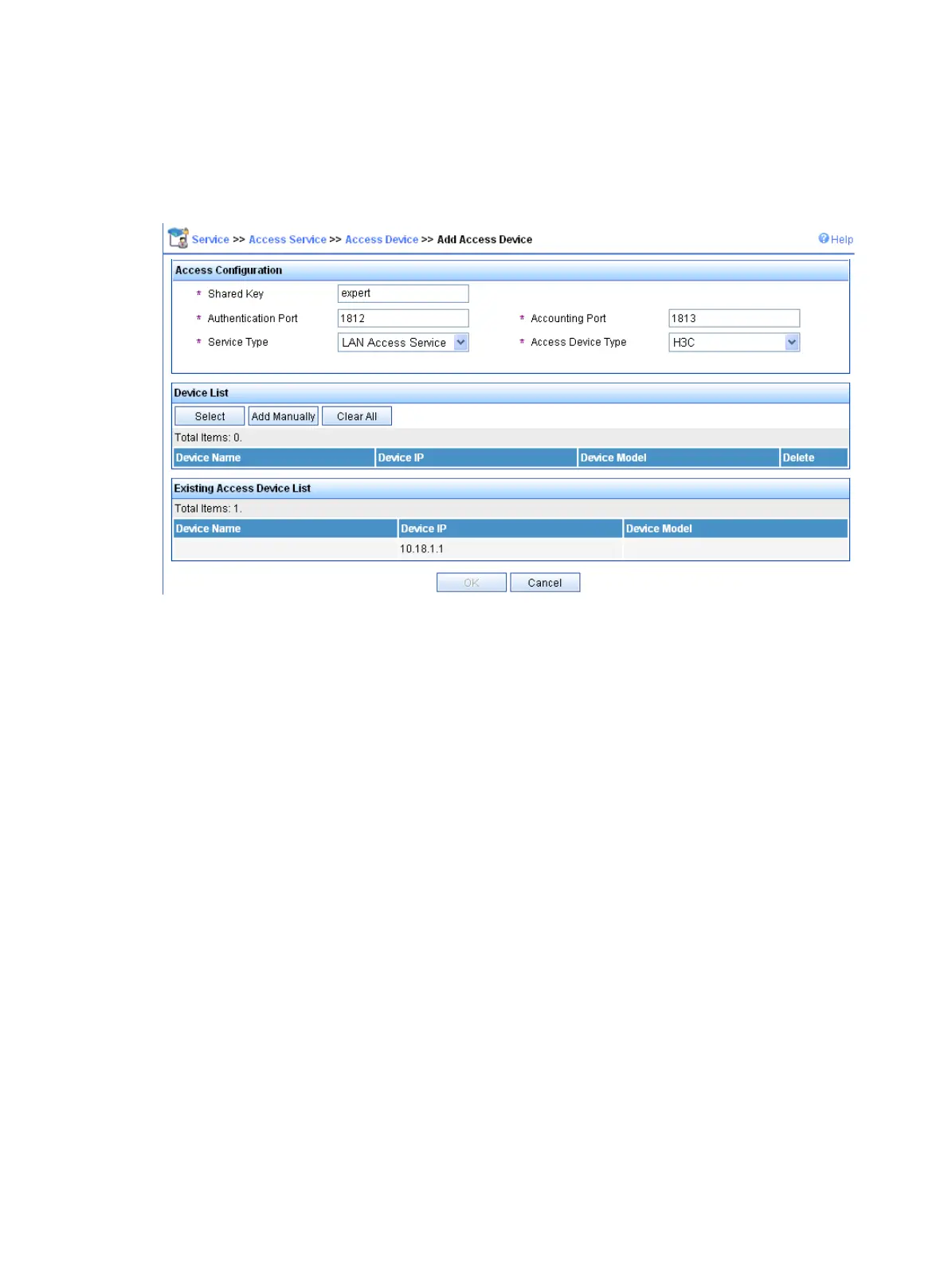

Figure 342 Add access device
2. Add service.
a. Select the Service tab.
b. Select Access Service > Access Device from the navigation tree.
c. Click Add.
d. On the page that appears, set the service name to dot1x, set the Certificate Type to EAP-PEAP
AuthN and the Certificate Sub Type to MS-CHAPV2 AuthN, and click Apply.

H3C WA Series Specifications

General

Brand	H3C
Model	WA Series
Category	Wireless Access Point
Language	English
