320
b. Click the Bind link at the right side of the wireless service mac-auth to enter the page as shown
in Figure 340.
c. Selec
t the box with radio mode 802.11n(2.4GHz).
d. Click Bind.

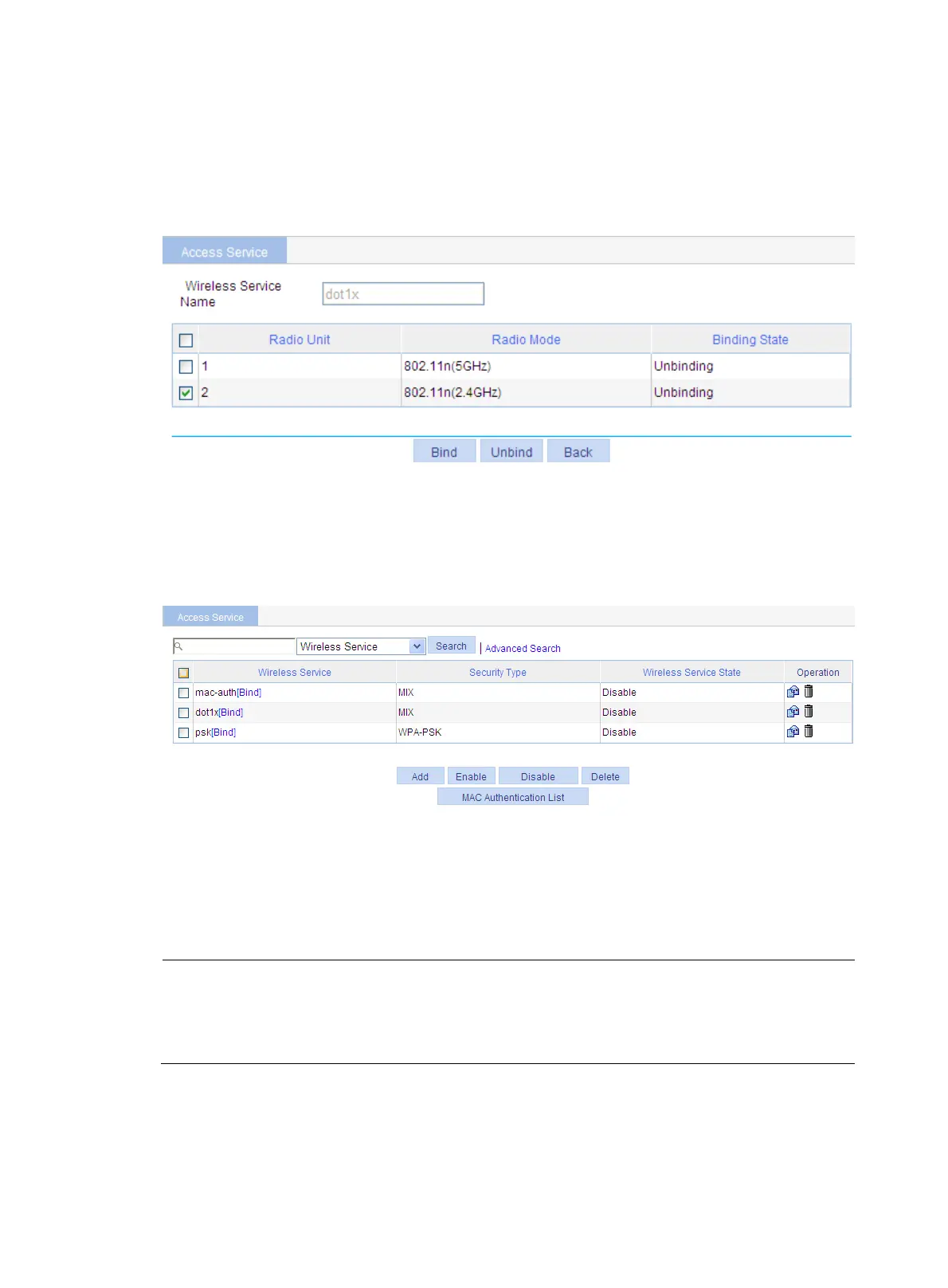

Figure 340 Bind an AP radio
7. Enable the wireless service
a. Select Wireless Service > Access Service from the navigation tree.
b. On the page that appears, select the dot1x box and click Enable.
Figure 341 Enable the wireless service
8. Optional: Enable 802.11n radio (By default, 802.11n radio is enabled.)
Select Radio > Radio from the navigation tree to enter the Radio page. Make sure 802.11n is
enabled.
Configuring the RADIUS server (iMCv3)
NOTE:
• The following takes the iMC (iMC PLAT 3.20-R2602 and iMC UAM 3.60-E6102) as an example to
illustrate the basic configuration of the RADIUS server.
• A license has been installed on the server.
1. Add access device.
a. Select the Service tab in the iMC platform.
b. Select Access Service > Access Device from the navigation tree.
c. Click Add.
