356

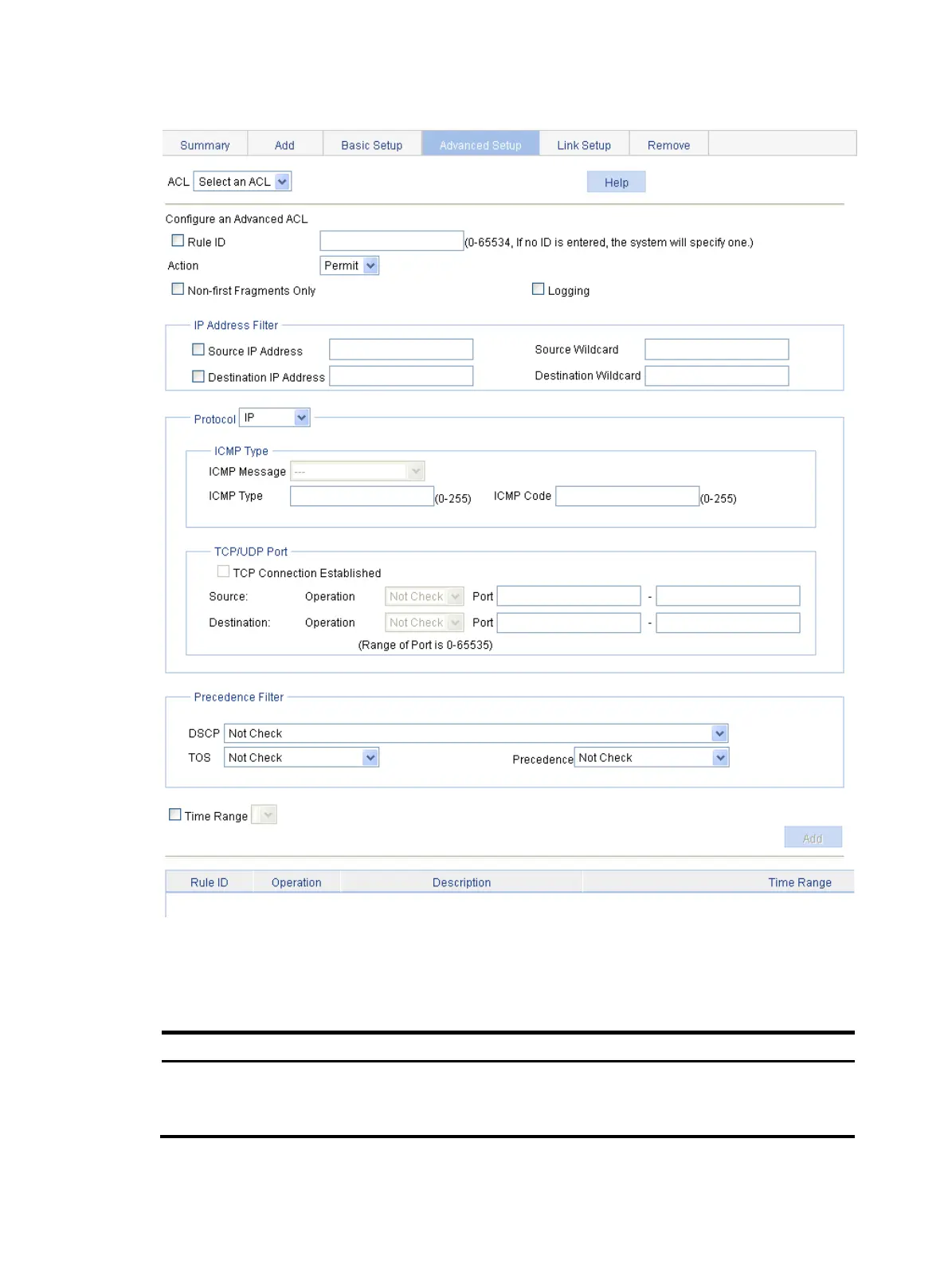

Figure 389 Configuring an advanced IPv4 ACL

3. Configure an advanced IPv4 ACL rule as described in Table 114.

4. Click Add.

Table 114 Configuration items

Item Descri

tion

ACL

Select the advanced IPv4 ACL for which you want to

configure rules.

Available ACLs are advanced IPv4 ACLs.
