HVB32LKI-- Video Interlink Output Module
- 32 interlinks for interconnecting chassis.

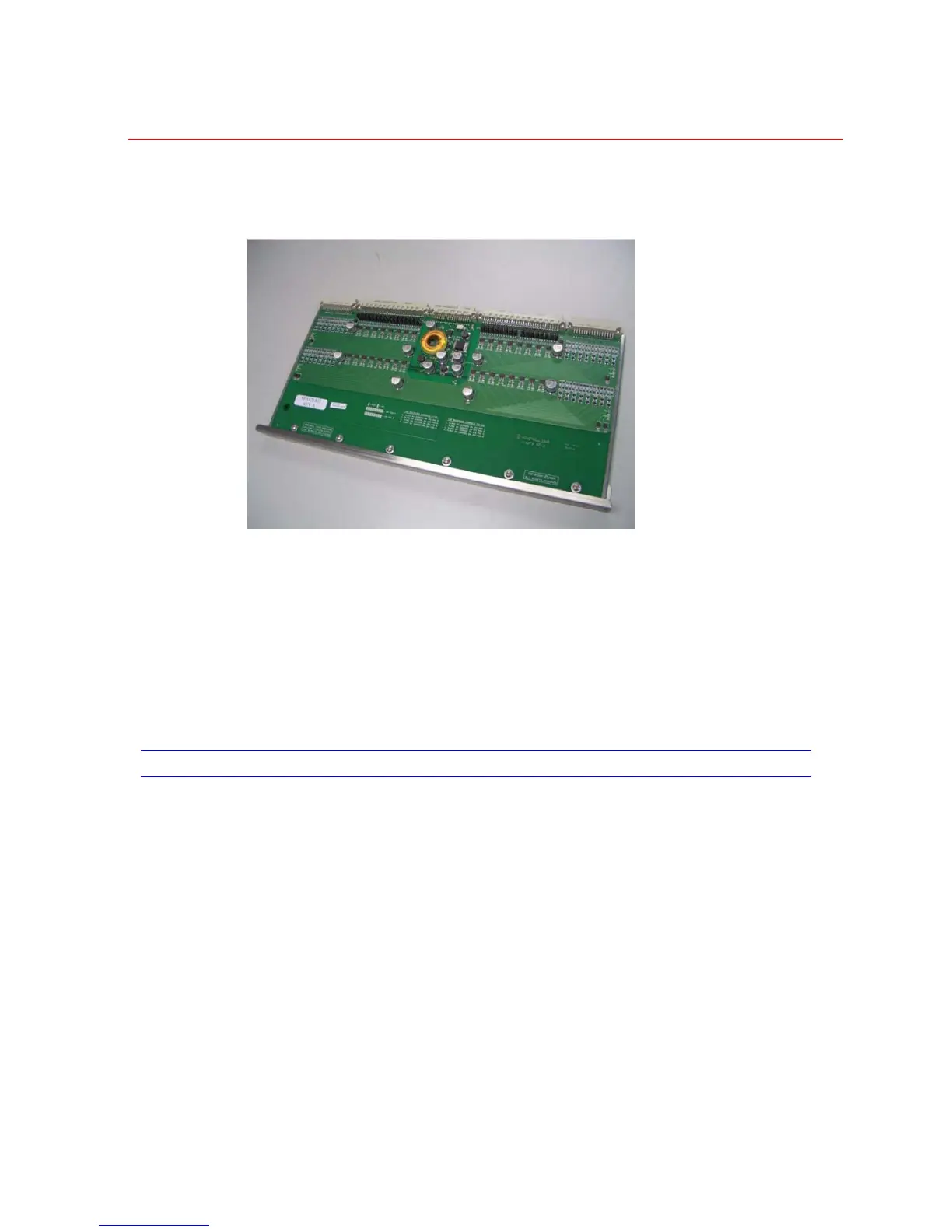

Figure 5-2 HVBLKO Module
Input and Output Interlink modules have the following features:
32 input /output channels, allowing for high density interconnects.
Balanced video driver and receivers allow high quality twisted pair connections for
video.
The “Master” chassis of a matrix is that which incorporates the video output modules,
which connect to video monitors. All other chassis are “Slave” chassis, which uses
interlink modules to connect their backplane signals to the main chassis.
Chassis Expansion Connection and Dip Switch Setting
Connect Master and multiple Slave chassis backplane Control (CONTROL) and
Communications (COMMS) channel by pin to pin DB9 male cable.
