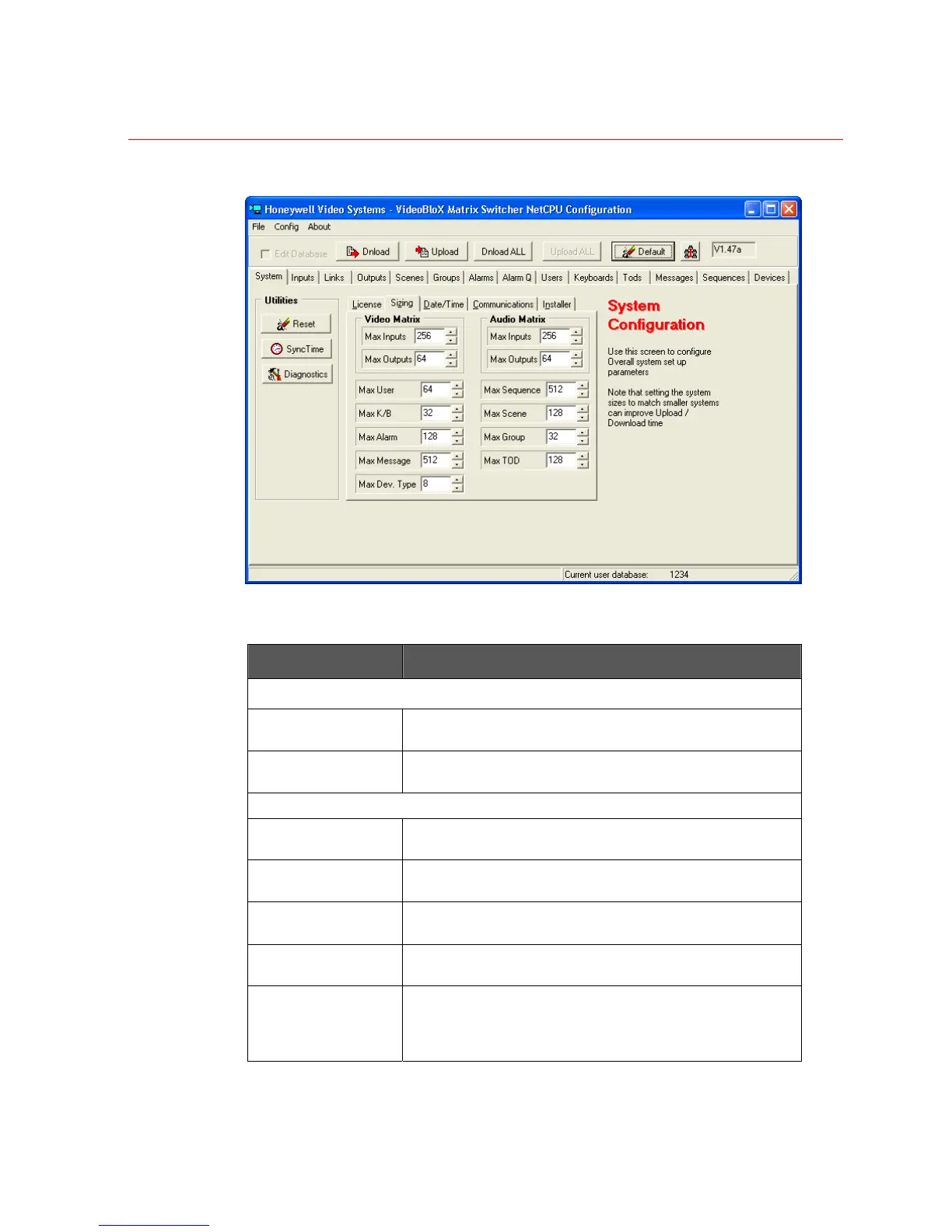

Figure 3-4 System-Sizing Configuration
Field Definitions
Field Description
Video Matrix
Max Inputs Defines the maximum number of video inputs in the system.
The max value is 10000.
Max Outputs Defines the maximum number of video outputs in the
system. The max value is 2048
Audio Matrix
Max Inputs Defines the maximum number of audio inputs in the system.
The max value is 4096
Max Outputs Defines the maximum number of audio outputs in the
system. The max value is 2048
Max User Defines the maximum number of users that have access to
the system. The max value is 255
Max K/B Defines the maximum number of keyboards in the system.
The max value is 255
Max Alarm Defines the maximum number of keyboards in the system.
The max value is 6256. 1-6000 are GPIO alarm in 250
boards (24 alarms pre boards), 6001-6256 are concentrator
alarm in 16 groups (16 alarms pre group).
