Honeywell VideoBloX User Manual

APPENDIX A: VideoBloX Chassis Interlink Expansion
144
HVB32LKI for channel 33 -
64 address dip switch as below picture. Install those two
HVB32LKI into Master chassis.

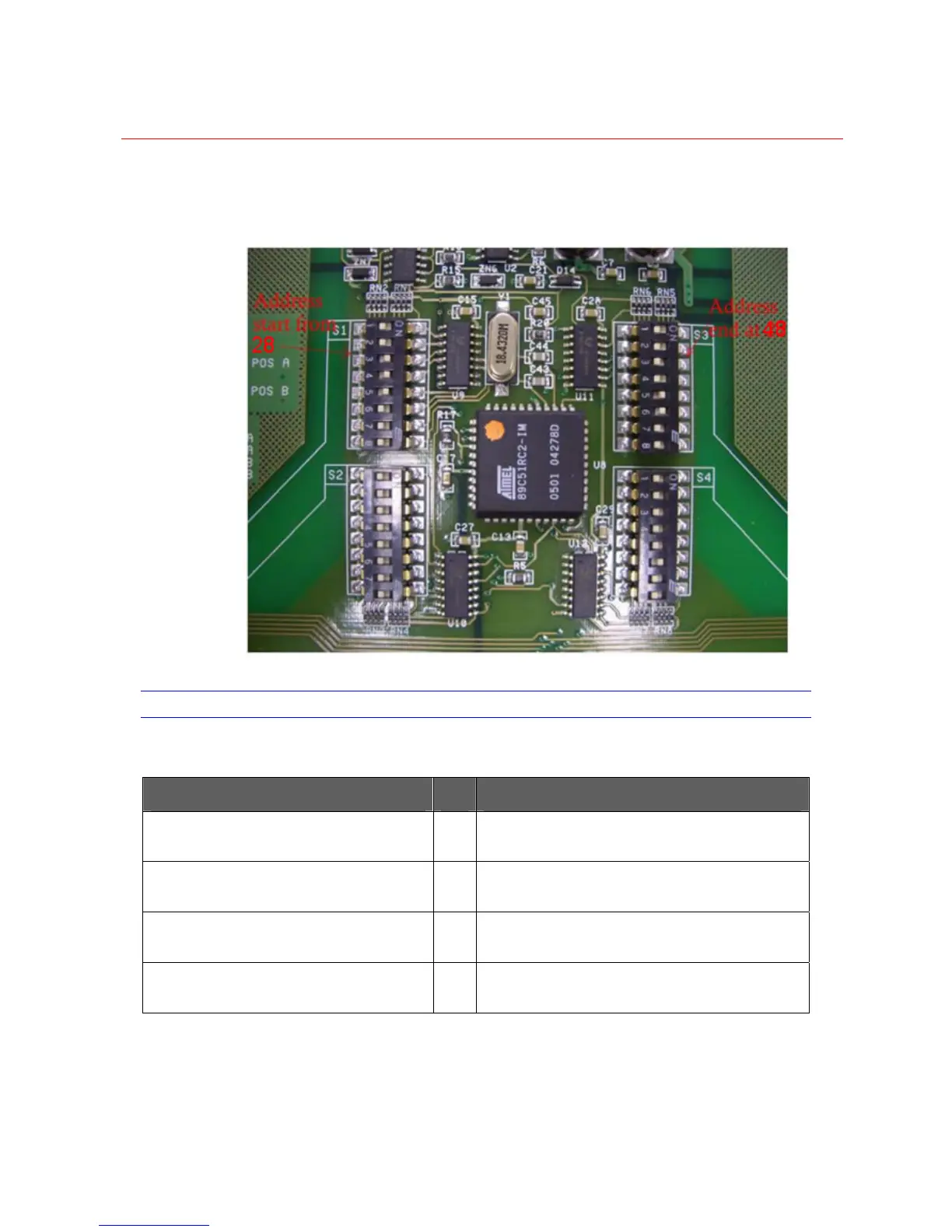

Figure 5-9 Inter-Link Start and End Address of 2
nd
Slave Chassis
RJ45 Cable Connection
Connect standard RJ45 cable from HVB32LKO to HVB32LKI.
HVB32LKO -> HVB32LKI
1
ST
Slave chassis with output channel 1-32
->
Master chassis with input channel 1-32 and
address 7-27
1
ST
Slave chassis with output channel 33-
64
->
Master chassis with input channel 33 - 64 and
address 7-27
2
nd
Slave chassis with output channel 1-32
->
Master chassis with input channel 1-32 and
address 28-48
2
nd
Slave chassis with output channel 33-
64
->
Master chassis with input channel 33-64 and
address 28 -48
